Same model may have multiple batches, images only for reference.

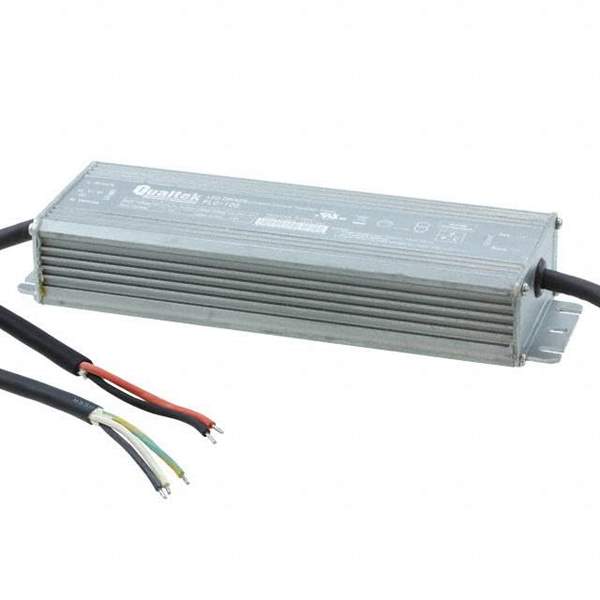

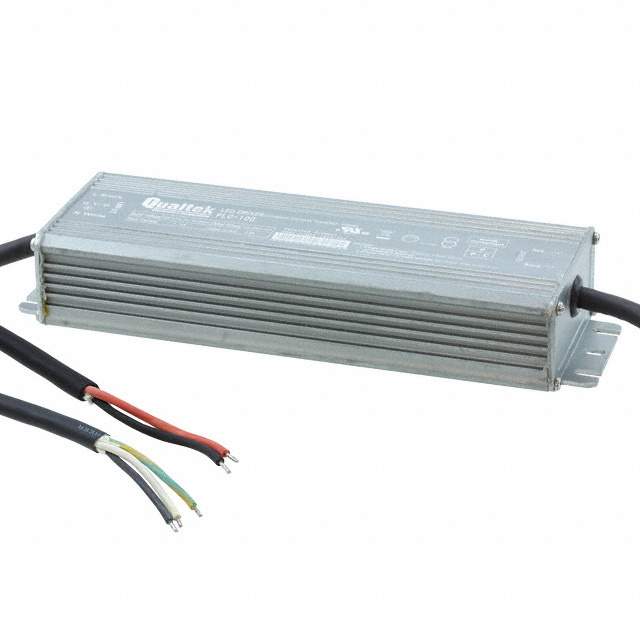

PLC-100S035 Real Image
Same model may have multiple batches, images only for reference.

PLC-100S035

Part No PLC-100S035
Manufacturer Qualtek
Catalog Board Mount LED Drivers
Description LED DRIVER CC AC/DC 143-286V
Datasheet
PLC-100S035 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - External/Internal (Off-Board)
Manufacturer Qualtek
Series PLC-100
Part Status Obsolete(EOL)
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Input Voltage MIN 90VAC
Voltage Input MAX 305VAC
Voltage - Output 143 ~ 286 V
Current - Output (Maximum) 350mA
Power (Watts) 100W
Voltage - Isolation 2kV (2000V)
Features OTP, OVP, SCP
Ratings IP67
Operating Temperature Range -35°C ~ 70°C
Efficiency 92%
Termination Style Wire Leads
Dimension 8.68" L x 2.66" W x 1.46" H (220.5mm x 67.5mm x 37.0mm)
Mounting Chassis Mount
Approvals CB, cULus
Win Source Part Number 760119-PLC-100S035
Popularity Medium
Supply and Demand Status Balance
Family Name PLC-100
Introduction Date June 06, 2012
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PLC-100S035 CAD Model

Description

The Qualtek PLC-100S035 is an obsolete (EOL) electronic component with a power of 100W.

  • Type: Constant Current
  • Termination Style: Wire Leads
  • Operating Temperature: -35°C ~ 70°C
  • Features: OTP, OVP, SCP
  • Approvals: CB, cULus
  • Mounting Type: Chassis Mount
  • Ratings: IP67
  • Topology: AC DC Converter
  • Voltage Isolation: 2kV (2000V)
  • Number of Outputs: 1
  • Efficiency: 92%
  • Family Name: PLC-100
  • Dimension: 8.68" L x 2.66" W x 1.46" H (220.5mm x 67.5mm x 37.0mm)
  • Input Voltage MIN: 90VAC
  • Voltage Input MAX: 305VAC
  • Current Output (Maximum): 350mA
  • Introduction Date: June 06, 2012
  • EOL Date: Obsolete
