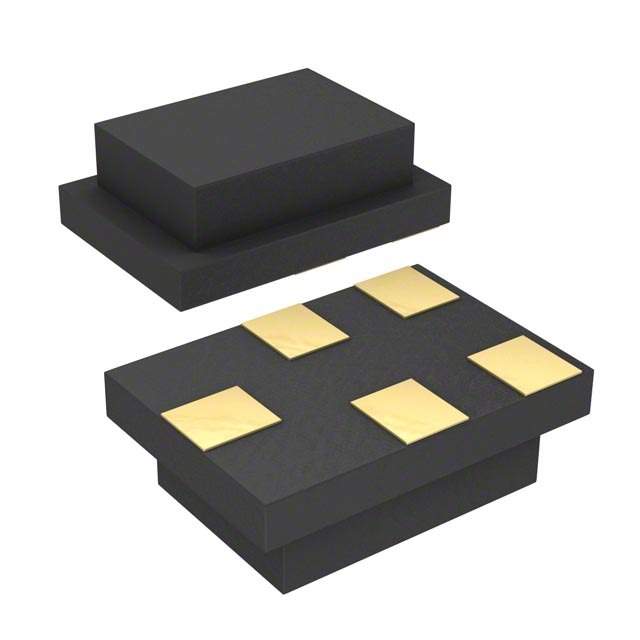

Same model may have multiple batches, images only for reference.

B39841B9859P810

Name: B39841B9859P810
Brand: Qualcomm
SKU: 975672
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B39841B9859P810
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	SAW FILTER / 836.5MHz Frequency Cellular, WCDMA RF SAW Filter (Surface Acoustic Wave) 1.4dB 25MHz Bandwidth 5-SMD, No Lead
Datasheet	B39841B9859P810 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>SAW Filters
Mfr	Qualcomm (RF front-end (RFFE) filters)
Package	Tape & Reel (TR)
Product Status	Obsolete
Frequency - Center	836.5MHz
Bandwidth	25MHz
Insertion Loss	1.4dB
Applications	Cellular, WCDMA
Mounting	SMD (SMT)
Package / Case	5-SMD, No Lead
Height (Max)	0.016" (0.40mm)
Dimension	0.043" L x 0.035" W (1.10mm x 0.90mm)
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.60.0080
Standard Package	5,000
Win Source Part Number	975672-B39841B9859P810
Ultra Librarian 3D Model	Ultra Librarian B39841B9859P810 CAD Model

Description

It has a Win Source Part Number of 975672-B39841B9859P810 and a package of tape & reel (TR).

Win Source Part Number: 975672-B39841B9859P810
Package: Tape & reel (TR)
Applications: Cellular and WCDMA
Bandwidth: 25MHz
Frequency Center: 836.5MHz
Mount: Surface mount device (SMD/SMT)
Height: 0.016" (0.40mm)
Dimension: 0.043" L x 0.035" W (1.10mm x 0.90mm)
Package/Case: 5-SMD, no lead
REACH: REACH unaffected
