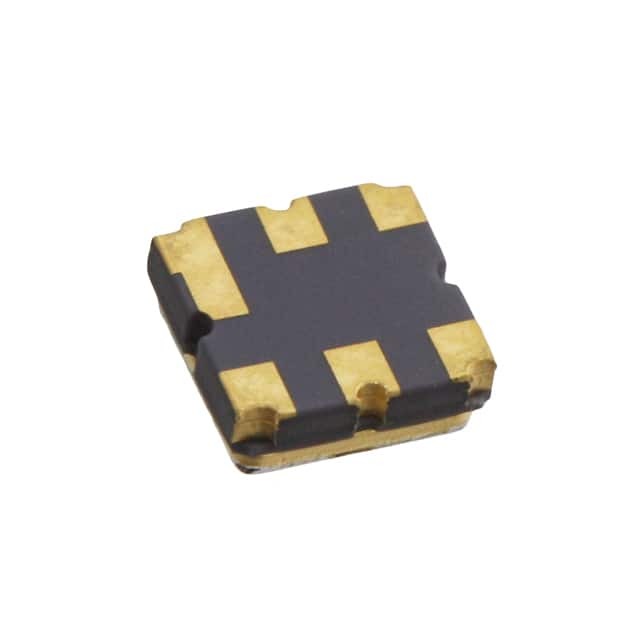

Same model may have multiple batches, images only for reference.
B39242B8831P810
Same model may have multiple batches, images only for reference.

B39242B8831P810

Part No B39242B8831P810
Manufacturer Qualcomm
Catalog SAW Filters
Description FILTER SAW 2.442GHZ 6SMD
Datasheet
B39242B8831P810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 8 Weeks
Features 2.442GHz Frequency Bluetooth, WLAN RF SAW Filter (Surface Acoustic Wave) 1.1dB 79MHz Bandwidth 6-SMD, No Lead
Manufacturer QUALCOMM
Series B8831
Package Reel - TR
Mounting Surface Mount
Package 6-SMD, No Lead
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Other Part Number Q8837998, 495-7020-6, B39242B8831P810-ND, B8831, 495-7020-1, 495-7020-2
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863320-B39242B8831P810
Ultra Librarian 3D Model Ultra Librarian B39242B8831P810 CAD Model

Description

The QUALCOMM 863320-B39242B8831P810 is a Bluetooth and WLAN RF SAW filter designed for 2.442GHz frequency applications.

  • Insertion Loss: 1.1dB
  • Bandwidth: 79MHz
  • Package: 6-SMD, no lead
  • Reel Quantity: 5000 pieces
  • Part Status: Not for new designs
  • Category: Filters
  • ECCN: EAR99
  • Popularity: Medium
  • REACH: REACH unaffected
  • HTSUS code: 8541.60.0080
  • Other part numbers: Q8837998, 495-7020-6, B39242B8831P810-ND, B8831, 495-7020-1, and 495-7020-2
