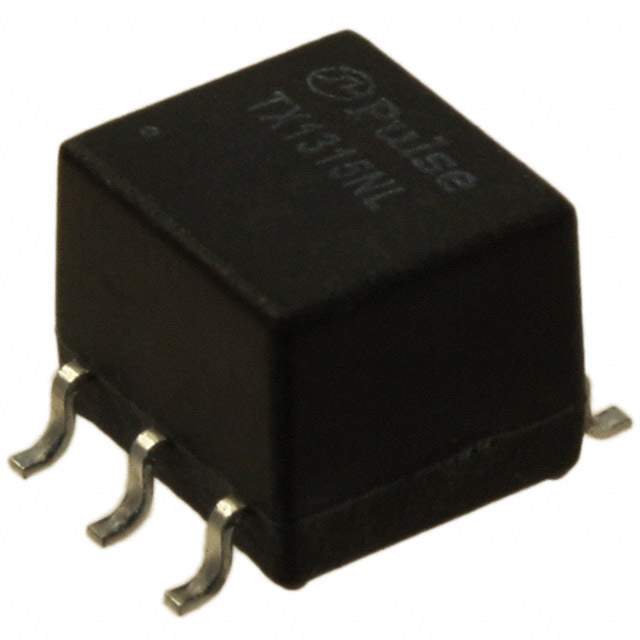

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type T1/E1 (Single)
Inductance 1.2mH
Mounting Style SMD
Parts Dimension 0.300" L x 0.276" W (7.62mm x 7.00mm)
Height - Seated (Maximum) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.02 oz (0.57g)
Manufacturer Pack Quantity 70
MSL Level 3 (168 Hours)
Win Source Part Number 1275093-TX1315NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TX1315NL CAD Model

Description

The TX1315NL is a medium popularity T1/E1 (Single) transformer designed and manufactured by Pulse Electronics Network.

  • Win Source Part Number: 1275093
  • Inductance: 1.2mH
  • Mounting Style: Designed for SMD mounting style.
  • Temperature Range: -40°C ~ 85°C
  • Manufacturer Pack Quantity: 70
  • Parts Dimension: 0.300" L x 0.276" W (7.62mm x 7.00mm)
  • MSL Level: 3 (168 Hours)
