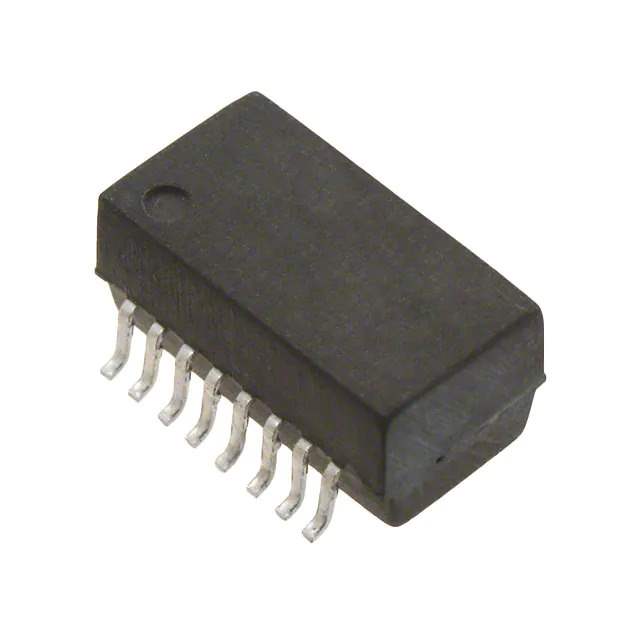

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351037-T1137
Ultra Librarian 3D Model Ultra Librarian T1137 CAD Model

Description

The 351037-T1137 is a pulse transformer designed for use in T1/E1 applications.

  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm)
  • Height: 0.245" (6.22mm)
  • Mounting: Suitable for surface mount mounting.
  • Inductance: 1.2mH
  • Operating Temperature Range: 0°C to 70°C
  • Package: Bulk
  • Standard Package: 40 pieces
  • Status: An obsolete product from Pulse.
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
  • MSL Level: 3, which means it can withstand 168 hours of moisture sensitivity.
  • HTSUS Code: 8504.31.2000.
