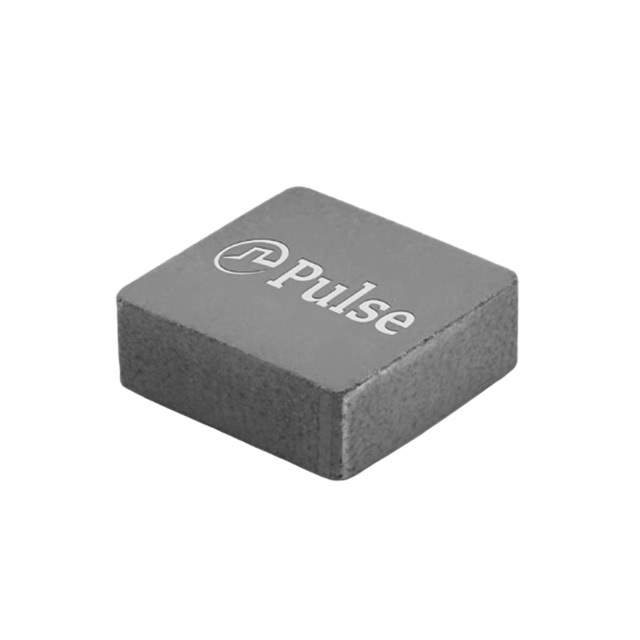

PM2205.821NLT Real Image
Same model may have multiple batches, images only for reference.

PM2205.821NLT

Part No PM2205.821NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 820NH 21A 4.18MOHM SMD / 820 nH Shielded Inductor 21 A 4.18mOhm Max Nonstandard
Datasheet
PM2205.821NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series PM2205.XXXNLT
Package Tape & Reel
Inductance 820 nH
Tolerance ±20%
Current Rating (Amps) 21 A
Current - Saturation (Isat) 24A
Shielding Shielded
DC Resistance (DCR) 4.18mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package SMD
Size / Dimension 0.260" L x 0.252" W (6.60mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1340157-PM2205.821NLT
Ultra Librarian 3D Model Ultra Librarian PM2205.821NLT CAD Model

Description

This is a fixed inductor that is designed for use in electronic circuits.

  • Series: PM2205.XXXNLT
  • Packaging: Tape & Reel
  • Shielded: Yes
  • Size/Dimension: 0.260" L x 0.252" W (6.60mm x 6.40mm)
  • Inductance: 820 nH
  • Height Seated: 0.197" (5.00mm)
  • Standard Package: 800
  • Tolerance: ±20%
  • Ratings: AEC-Q200
  • Core Material: -
  • Mount Type: Surface Mount
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 4.18mOhm Max
  • Supplier Device Package: SMD
  • Operating Temperature: -55°C ~ 155°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.4000
  • Manufacturer: Pulse Electronics
  • Current Rating (Amps): 21 A
  • Inductance Frequency-Test: 100 kHz
  • Current Saturation (Isat): 24A
