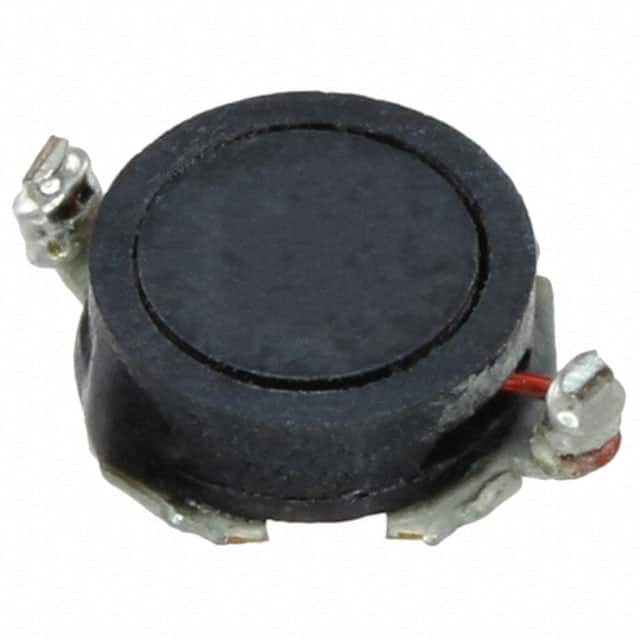

Same model may have multiple batches, images only for reference.
PG0085.682NLT

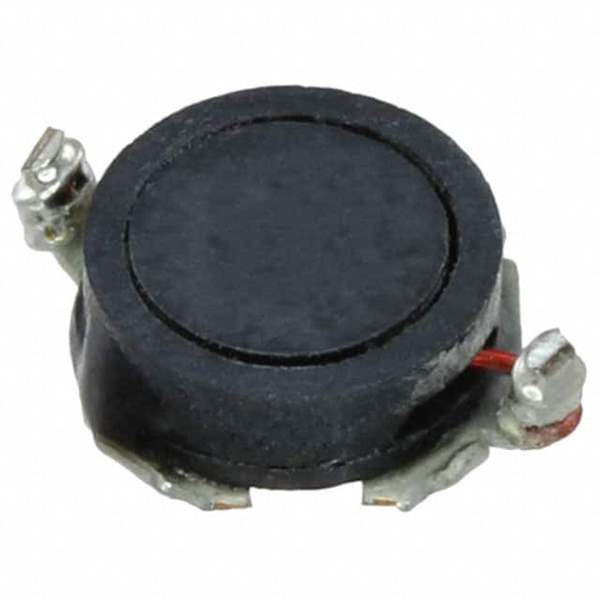

Same model may have multiple batches, images only for reference.

PG0085.682NLT

Part No PG0085.682NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 6.8UH 660MA 115MOHM SM
Datasheet
PG0085.682NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PG0085NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 660 mA
Current - Saturation (Isat) 660mA
Shielding Shielded
DC Resistance (DCR) 115mOhm Max
Frequency - Self Resonant 38MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.169" L x 0.169" W (4.30mm x 4.30mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 2,850 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888995-PG0085.682NLT
Ultra Librarian 3D Model Ultra Librarian PG0085.682NLT CAD Model

Description

The 888995-PG0085.682NLT is a fixed inductor from the PG0085NL series manufactured by Pulse.

  • Series: PG0085NL
  • Type: Wirewound
  • Shielding: Shielded
  • Package: Tape & Reel
  • Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Inductance: 6.8µH
  • Height: 0.071" (1.80mm)
  • Standard Package: 2,850 pieces
  • Tolerance: ±20%
  • Frequency Self-Resonant: 38MHz
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 130°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Status: Active
