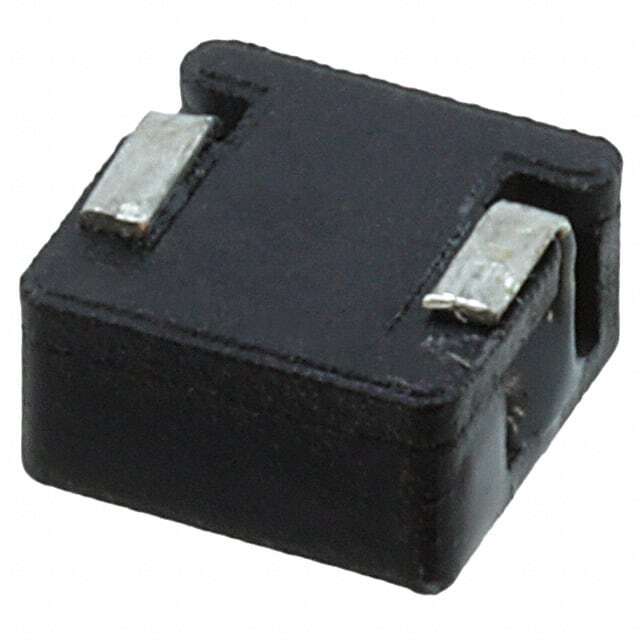

Same model may have multiple batches, images only for reference.
PG0083.472NLT
Same model may have multiple batches, images only for reference.

PG0083.472NLT

Part No PG0083.472NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.5A 38 MOHM SMD / 4.7 μH Unshielded Wirewound Inductor 4.5 A 38mOhm Max Nonstandard
Datasheet
PG0083.472NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PG0083
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 4.7 µH
Tolerance ±25%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 8A
Shielding Unshielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -40°C ~ 95°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 930307-PG0083.472NLT
Ultra Librarian 3D Model Ultra Librarian PG0083.472NLT CAD Model

Description

The 930307-PG0083.472NLT is a wirewound fixed inductor from the PG0083 series by Pulse.

  • Size: 0.268" L x 0.268" W (6.80mm x 6.80mm)
  • Inductance: 4.7 µH
  • Maximum Seated Height: 0.157" (4.00mm)
  • DC Resistance (DCR): 38mOhm
  • Current Rating: 4.5 A
  • Saturation Current: 8A
  • Operating Temperature: -40°C to 95°C
  • Package: Nonstandard
  • Packaging: Tape & reel
