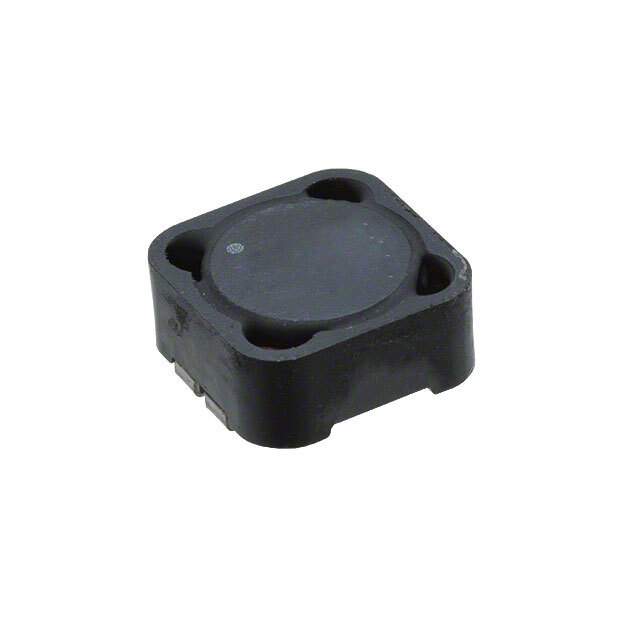

PF0552.333NLT Real Image
Same model may have multiple batches, images only for reference.

PF0552.333NLT

Part No PF0552.333NLT
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 34UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Reel
Number of Coils 2
Inductance - Connected In Parallel 34μH
Inductance - Connected In Series 135μH
Tolerance ±20%
Current Rating - Parallel 3.7A
Current Rating - Series 1.9A
Current Saturation - Parallel 3.9A
Current Saturation - Series 2A
DC Resistance (DCR) - Parallel 54mOhm Max
DC Resistance (DCR) - Series 220mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.236" (6.00mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807646-PF0552.333NLT
Ultra Librarian 3D Model Ultra Librarian PF0552.333NLT CAD Model

Description

The Pulse Electronics Power PF0552.333NLT is a shielded inductor that is mounted using SMD (SMT) technology.

  • Tolerance: ±20%
  • Height: 0.236 inches
  • Coils: Two
  • Inductance (Series): 135μH
  • Inductance (Parallel): 34μH
  • Current Rating (Parallel): 3.7A
  • Current Rating (Series): 1.9A
  • Current Saturation (Parallel): 3.9A
  • Current Saturation (Series): 2A
  • DC Resistance (DCR) (Parallel): 54mOhm Max
  • DC Resistance (DCR) (Series): 220mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.492 inches L x 0.492 inches W
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 500
