Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272297-PE-68678T
Ultra Librarian 3D Model Ultra Librarian PE-68678T CAD Model

Description

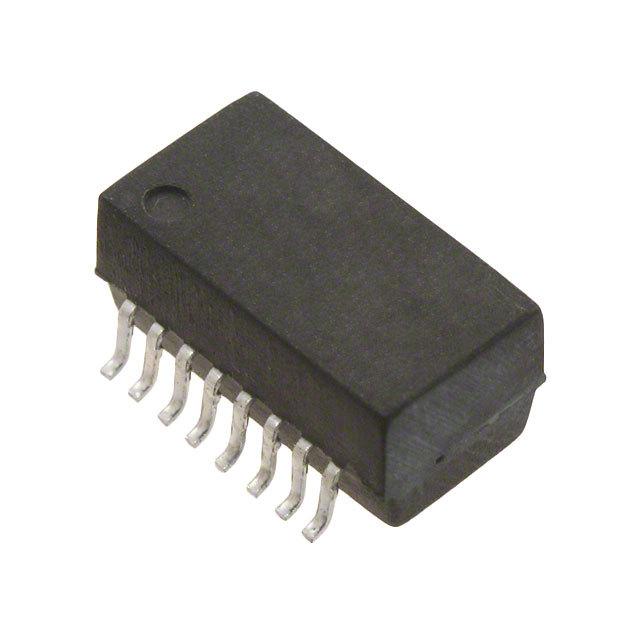

The 272297-PE-68678T is a pulse transformer designed for surface mount applications.

  • Size: 0.505" x 0.280" (12.83mm x 7.11mm)
  • Seated Height: 0.245" (6.22mm)
  • Standard Package Quantity: 600 pieces
  • Temperature Range: 0°C to 70°C
  • Manufacturer: Pulse
  • Moisture Sensitivity Level: 3 (168 Hours)
