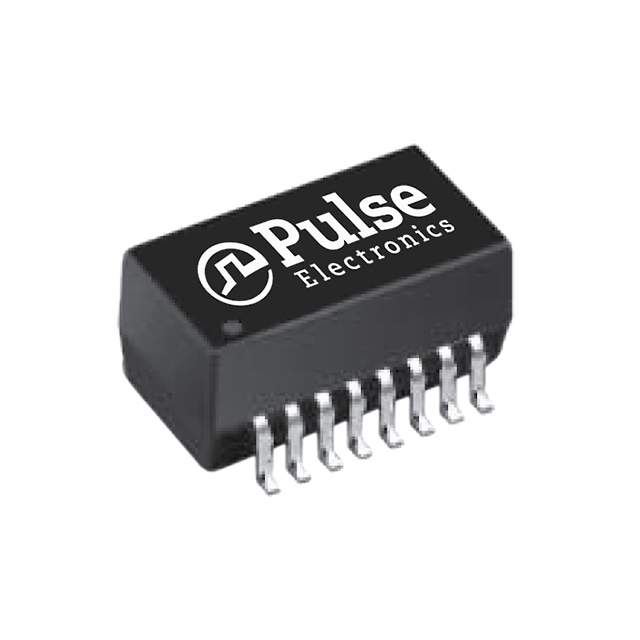

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272187-PE-65870T
Ultra Librarian 3D Model Ultra Librarian PE-65870T CAD Model

Description

The Pulse Transformer with Win Source Part Number 272187-PE-65870T is a surface mountable transformer designed for various applications.

  • Package: Tape and reel
  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm)
  • Transformer Type: Not specified
  • Inductance: Not specified
  • Seated Height: 0.245" (6.22mm)
  • Temperature Range: 0°C to 70°C
  • MSL Level: 3 (168 hours)
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS code: 8504.31.2000
