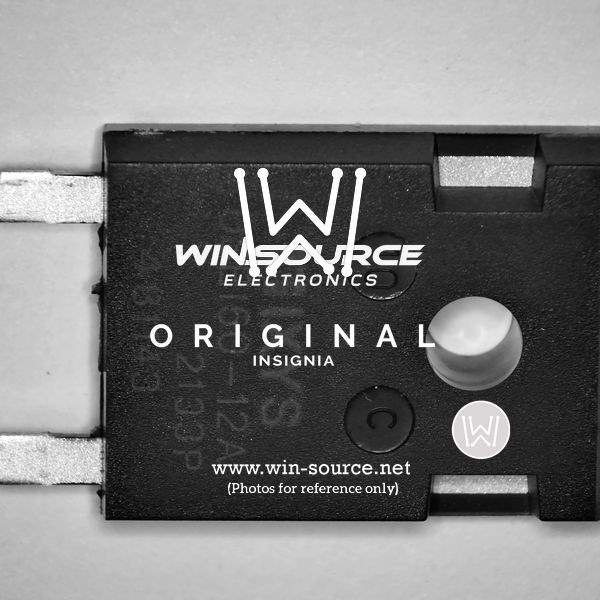

DSEI60-12A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 52A
Voltage - Forward (Vf) (Max) @ If 2.55V @ 60A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 2.2mA @ 1200V
Mounting Through Hole
Case / Package TO-247AD
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 203459-DSEI60-12A
Family Name DSEI60-12A
Introduction Date October 22, 2000
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSEI60-12A CAD Model

Description

Features and Benefits of DSEI60-12A

  • High reverse voltage rating for versatile applications.
  • Low reverse recovery time enhances efficiency.
  • Temperature stability ensures consistent performance across a wide range of conditions.

Applications and Projects

  • Industrial equipment power supplies
  • Renewable energy systems
  • Lighting ballast circuits
  • Electric vehicle charging stations

The DSEI60-12A diodes are engineered for high reliability and efficiency, suitable for various professional-grade electronic applications.
