Same model may have multiple batches, images only for reference.

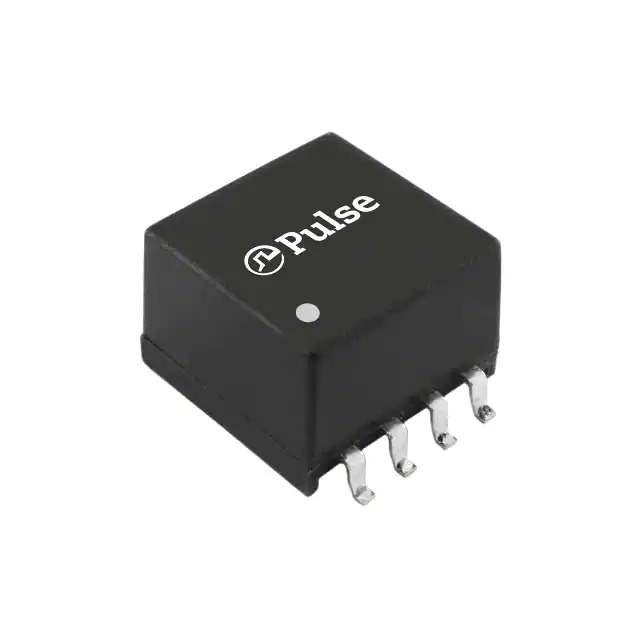

PE-65812NL Real Image
Same model may have multiple batches, images only for reference.

PE-65812NL

Part No PE-65812NL
Manufacturer Pulse
Catalog Specialty Transformers
Description XFRMR DIGITAL AUDIO 1:1 2.5MH
Datasheet
PE-65812NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 2.5 mH
Mounting Type Surface Mount
Size / Dimension 0.475" L x 0.460" W (12.07mm x 11.68mm)
Height - Seated (Max) 0.340" (8.64mm)
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 654183-PE-65812NL
Ultra Librarian 3D Model Ultra Librarian PE-65812NL CAD Model

Description

The 654183-PE-65812NL is a specialty transformer in the category of transformers from Pulse.

  • Series or related products: None specified
  • Package: tube
  • Size or dimension: 0.475" L x 0.460" W (12.07mm x 11.68mm)
  • Inductance: 2.5mH
  • Maximum seated height: 0.340" (8.64mm)
  • Standard package: 40 pcs
  • Mounting: surface mount
  • MSL level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS code: 8504.31.2000
  • Manufacturer: Pulse
  • Status: active
  • Approval agency: None specified
