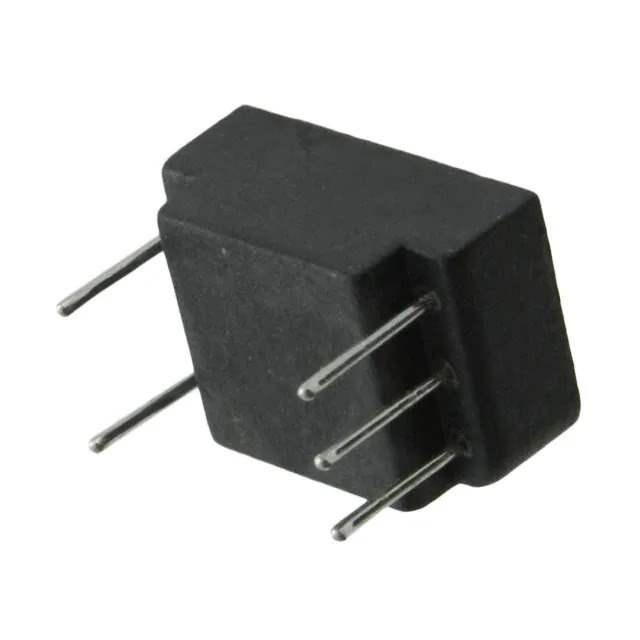

PE-65351 Real Image
Same model may have multiple batches, images only for reference.

PE-65351

Part No PE-65351
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:2CT 1.2MH
Datasheet
PE-65351 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Obsolete
Inductance 1.2mH
Mounting Type Through Hole
Size / Dimension 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 654161-PE-65351
Ultra Librarian 3D Model Ultra Librarian PE-65351 CAD Model

Description

The 654161-PE-65351 is a pulse transformer designed for through-hole mounting.

  • Mounting: Through-hole
  • Package Size: 0.500" L x 0.350" W (12.70mm x 8.89mm)
  • Inductance: 1.2mH
  • Seated Height: 0.250" (6.35mm)
  • Standard Package: 60 pieces
  • Operating Temperature: 0°C to 70°C
  • REACH: Not affected
