Same model may have multiple batches, images only for reference.

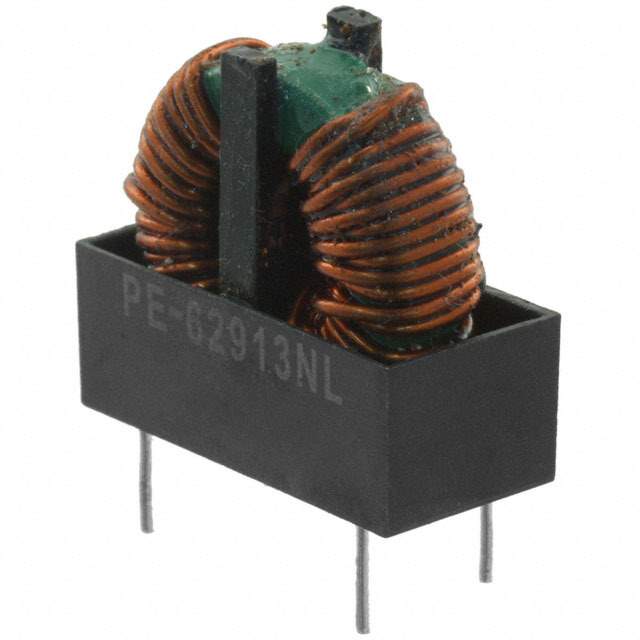

PE-62913NL Real Image
Same model may have multiple batches, images only for reference.

PE-62913NL

Part No PE-62913NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 1MH 6A 2LN TH
Datasheet
PE-62913NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1mH @ 1kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 1.160" (29.46mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 209759-PE-62913NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62913NL CAD Model

Description

Pulse Electronics Corporation's power line filter is a high-quality component that is designed to provide excellent performance and reliability.

  • Manufacturer: Pulse Electronics Corporation
  • Current Rating: 6A
  • Inductance: 1mH @ 1kHz
  • DC Resistance: 20 mOhm
  • Temperature Range: -40°C to 125°C
  • Mounting Style: Through-hole
  • Dimension: Vertical, 4 PC pin
  • Popularity: Medium
  • Supply and Demand Status: Limited
