Same model may have multiple batches, images only for reference.

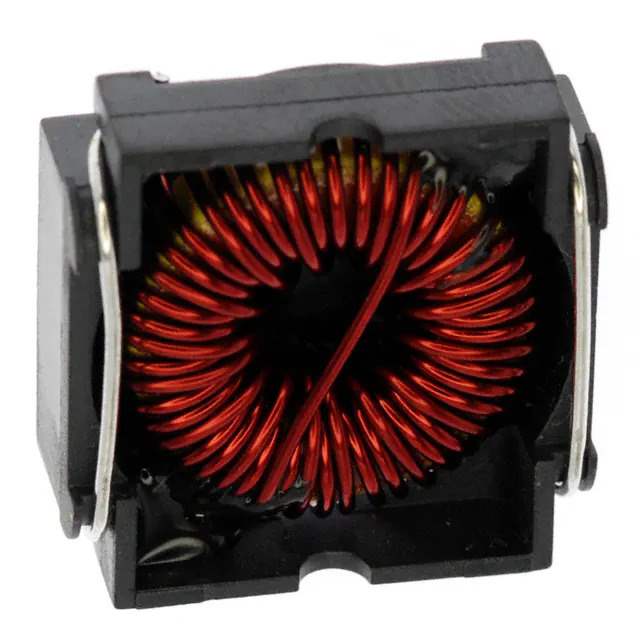

PE-54040SNL Real Image
Same model may have multiple batches, images only for reference.

PE-54040SNL

Part No PE-54040SNL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 38UH 3A 50 MOHM SMD / 38 μH Shielded Toroidal Inductor 3 A 50mOhm Nonstandard
Datasheet
PE-54040SNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Package Bulk
Product Status Active
Type Toroidal
Inductance 38 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Shielded
DC Resistance (DCR) 50mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.940" L x 0.940" W (23.88mm x 23.88mm)
Height - Seated (Max) 0.400" (10.16mm)
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 930220-PE-54040SNL
Ultra Librarian 3D Model Ultra Librarian PE-54040SNL CAD Model

Description

The 930220-PE-54040SNL is a fixed inductor from Pulse.

  • Manufacturer: Pulse
  • Shielding: Shielded
  • Package: bulk
  • Size: 0.940" L x 0.940" W (23.88mm x 23.88mm)
  • Height: 0.400" (10.16mm)
  • Inductance: 38 μH
  • DC Resistance (DCR): 50mOhm
  • Operating Temperature Range: -40°C to 130°C
  • Current Rating: 3 A
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Type: Toroidal
  • Status: active
