Same model may have multiple batches, images only for reference.

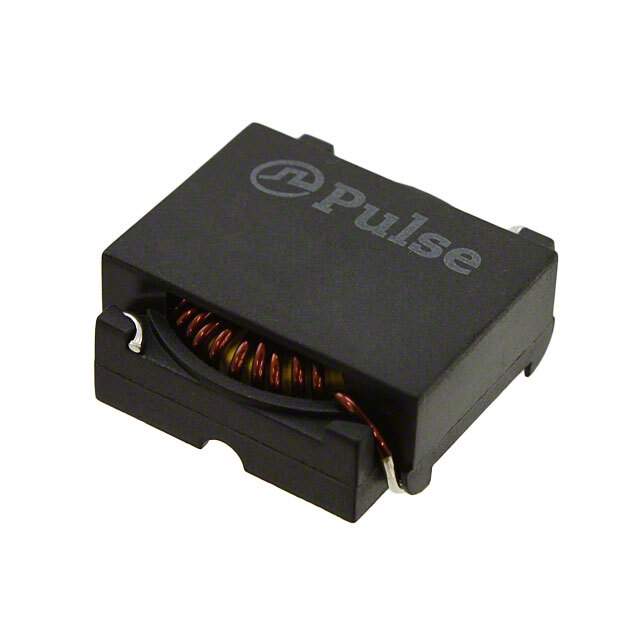

PE-54039SNLT Real Image
Same model may have multiple batches, images only for reference.

PE-54039SNLT

Part No PE-54039SNLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 53UH 3A 80 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Reel
Type Toroidal
Inductance 53μH
Tolerance ±20%
Current Rating (Amps) 3A
Shielding Shielded
DC Resistance (DCR) 80mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.940" L x 0.940" W (23.88mm x 23.88mm)
Height - Seated (Maximum) 0.400" (10.16mm)
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807974-PE-54039SNLT
Ultra Librarian 3D Model Ultra Librarian PE-54039SNLT CAD Model

Description

The 807974-PE-54039SNLT is a transformer from Pulse Electronics Power.

  • Transformer Type: Toroidal
  • Inductance: 53μH
  • Mounting Type: SMD
  • Tolerance: ±20%
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (unlimited)
  • DC Resistance (DCR): 80mOhm
  • Dimension: 0.940" L x 0.940" W (23.88mm x 23.88mm)
  • Height Seated: 0.400" (10.16mm)
