Same model may have multiple batches, images only for reference.

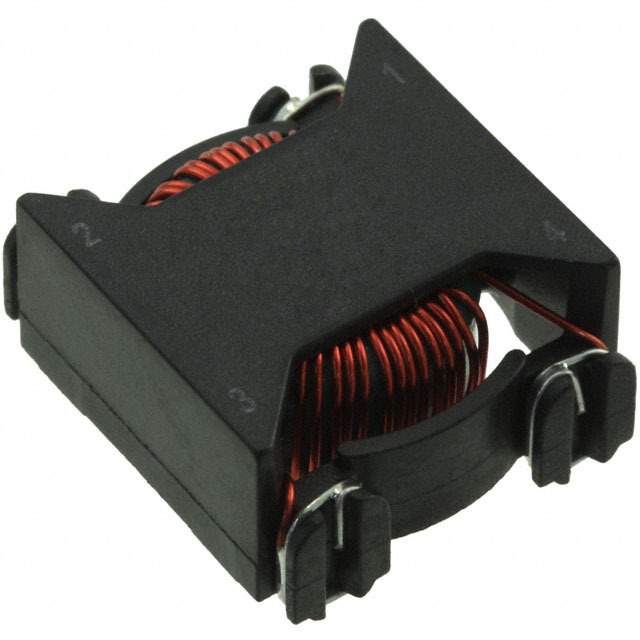

PE-53914NL Real Image
Same model may have multiple batches, images only for reference.

PE-53914NL

Part No PE-53914NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 500MA 2LN SMD
Datasheet
PE-53914NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 850 mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height (Max) 0.350" (8.89mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 124650-PE-53914NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-53914NL CAD Model

Description

The Pulse Electronics Corporation 124650-PE-53914NL is a power line filter with a maximum current rating of 500mA.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 124650-PE-53914NL
  • Current Rating (Max): 500mA
  • Voltage Rating: 250V AC
  • Mounting: SMD (SMT)
  • Height: 0.350" (8.89mm)
  • Lines: 2
  • DC Resistance (DCR): 850 mOhm
  • Temperature Range: -40°C to 130°C
  • Popularity: Popular
  • Supply and Demand: Balance
