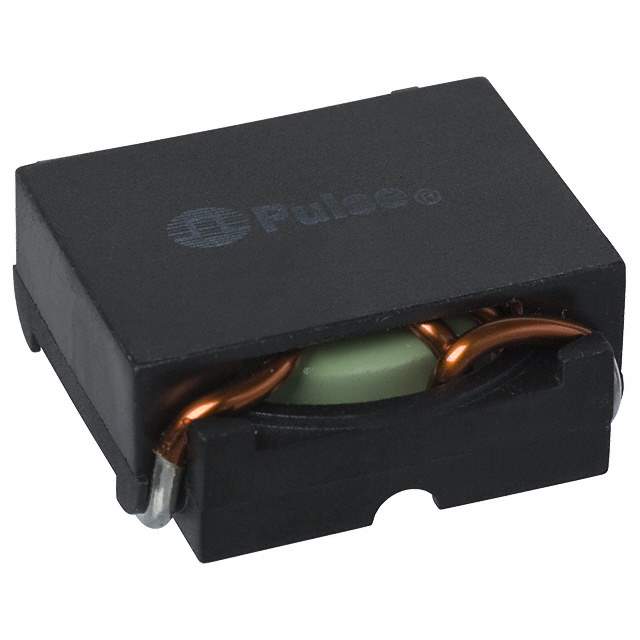

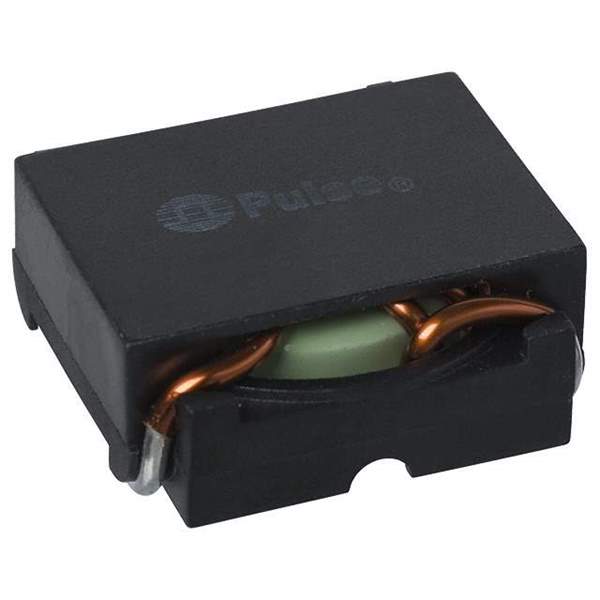

PE-53683NLT Real Image
Same model may have multiple batches, images only for reference.

PE-53683NLT

Part No PE-53683NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 9.4UH 10.9A 12.3 MOHM
Datasheet
PE-53683NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Toroidal
Inductance 9.4μH
Current Rating 10.9A
DC Resistance (DCR) 12.3 mOhm Max
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height - Seated (Max) 0.390" (9.91mm)
Win Source Part Number 045688-PE-53683NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-53683NLT CAD Model

Description

The Pulse Electronics Corporation PE-53683NLT is a toroidal type inductor with a current rating of 10.9A and an inductance of 9.4μH.

  • Current Rating: 10.9A
  • Inductance: 9.4μH
  • DC Resistance (DCR): 12.3 mOhm maximum
  • Mounting: SMD (SMT) technology
  • Packaging: Reel
  • Height: 0.390" (9.91mm)
  • Temperature Rating: -40°C to 130°C
