Same model may have multiple batches, images only for reference.

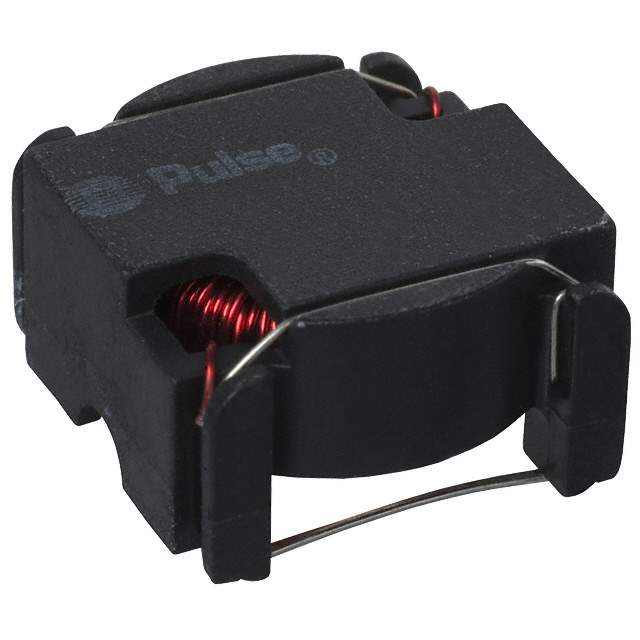

PE-53661NLT Real Image
Same model may have multiple batches, images only for reference.

PE-53661NLT

Part No PE-53661NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.5UH 8A 8.3 MOHM SMD / Inductor Power Toroid 3.8uH/2.5uH 8A 0.0083Ohm DCR T/R
Datasheet
PE-53661NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series SLIC
Packaging Reel package
Type Toroidal
Inductance 2.5μH
Current Rating 8A
Shielding Unshielded
DC Resistance (DCR) 8.3 mOhm Max
Operating Temperature Range -40°C ~ 130°C
Mounting SMD
Package Nonstandard
Dimension 0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Maximum) 0.360" (9.14mm)
Win Source Part Number 791642-PE-53661NLT
Popularity Medium
Supply and Demand Status Limited
Family Name SLIC
Introduction Date April 29, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PE-53661NLT CAD Model

Description

The Pulse Electronics Corporation SLIC series Toroidal inductor is an ideal choice for use in a variety of electronic devices.

  • Package: Nonstandard
  • Shielding: Unshielded
  • Inductance: 2.5μH
  • Current Rating: 8A
  • Operating Temperature: -40°C to 130°C
  • DC Resistance (DCR): 8.3 mOhm Max
  • Dimension: 0.570" L x 0.565" W (14.48mm x 14.35mm)
  • Height: 0.360" (9.14mm)
  • Category: Inductors, Coils, Chokes
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
