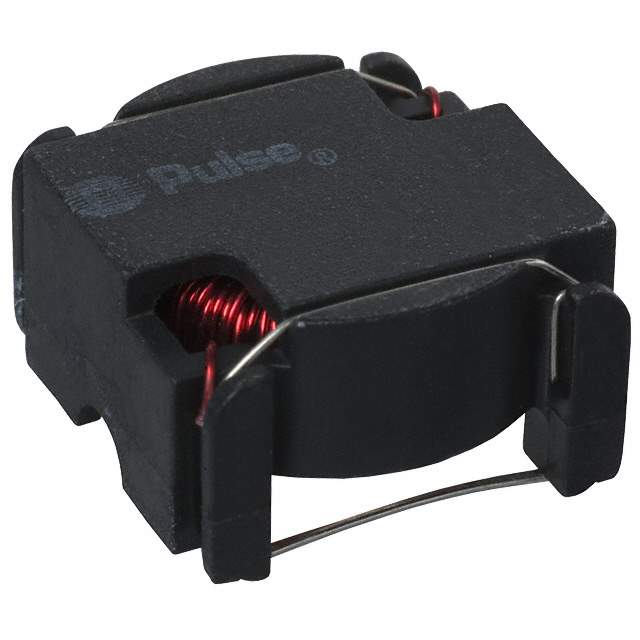

Same model may have multiple batches, images only for reference.

PE-53651NL

Name: PE-53651NL
Brand: Pulse
SKU: 1084510
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PE-53651NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 5.1UH 5.4A 17.7MOHM SM / 5.1 µH Unshielded Toroidal Inductor 5.4 A 17.7mOhm Max Nonstandard
Datasheet	PE-53651NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	SLIC
Package	Bulk
Type	Toroidal
Inductance	5.1 µH
Current Rating (Amps)	5.4 A
Shielding	Unshielded
DC Resistance (DCR)	17.7mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Max)	0.360" (9.14mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-1380,PE53651NL
Standard Package	30
Win Source Part Number	1084510-PE-53651NL
Ultra Librarian 3D Model	Ultra Librarian PE-53651NL CAD Model

Alternative Products

Description

The PE-53651NL is a fixed inductor from the SLIC series manufactured by Pulse Electronics Power.

Type: toroidal
Package: unshielded
Inductance: 5.1 µH
Standard Package: 30
DC Resistance (DCR): 17.7mOhm Max
Operating Temperature Range: from -40°C to 130°C
ECCN: EAR99
REACH: unaffected
: 4 A
