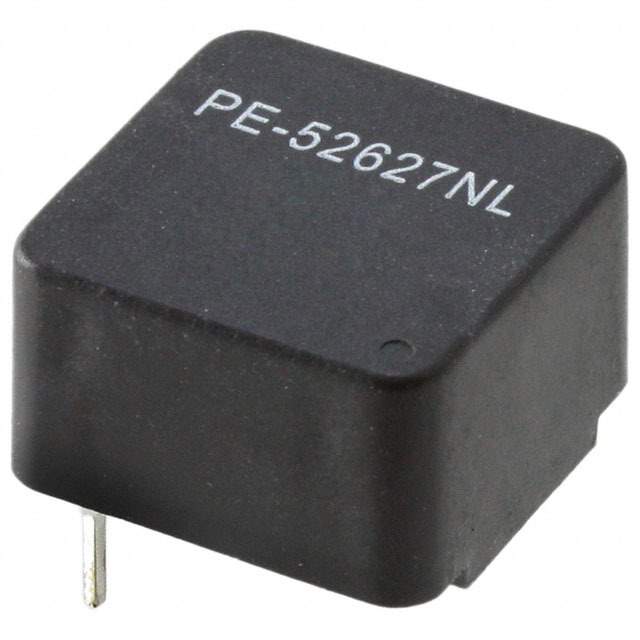

PE-52627NL Real Image
Same model may have multiple batches, images only for reference.

PE-52627NL

Part No PE-52627NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 330UH 1A 780 MOHM TH
Datasheet
PE-52627NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Type Toroidal
Inductance 330μH
Current Rating 1A
DC Resistance (DCR) 780 mOhm Max
Temperature Range - Operating -40°C to 130°C
Frequency - Test 20kHz
Mounting Through Hole
Height - Seated (Max) 0.460" (11.68mm)
Win Source Part Number 045686-PE-52627NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-52627NL CAD Model

Description

The Pulse Electronics Corporation 045686-PE-52627NL is a toroidal inductor that has a current rating of 1A and an inductance of 330μH.

  • Current Rating: 1A
  • Inductance: 330μH
  • Maximum DC Resistance: 780 mOhm
  • Height: 0.460" (11.68mm) when seated
  • Frequency for self-resonant and test: Not specified
  • Packaging: Tube/rail
  • Mounting: Through a hole
  • Supply and Demand Status: Limited
