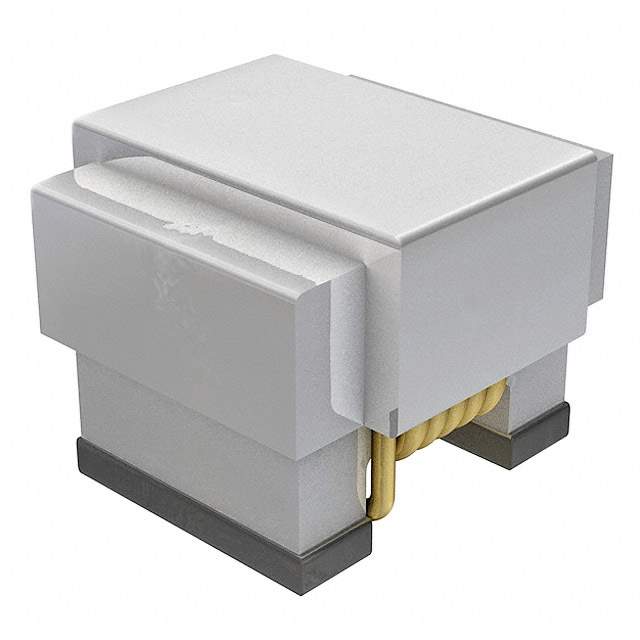

PE-0805CD560JTT Real Image
Same model may have multiple batches, images only for reference.

PE-0805CD560JTT

Part No PE-0805CD560JTT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 55.5NH 500MA 340 MOHM / 55.5 nH Unshielded Drum Core, Wirewound Inductor 500 mA 340mOhm Max 0805 (2012 Metric)
Datasheet
PE-0805CD560JTT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 55.5 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 340mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 1.55GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max) 0.062" (1.58mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1327569-PE-0805CD560JTT
Ultra Librarian 3D Model Ultra Librarian PE-0805CD560JTT CAD Model

Description

The Pulse Electronics 1327569-PE-0805CD560JTT is a drum core, wirewound inductor with unshielded shielding.

  • Type: drum core, wirewound
  • Shielding: unshielded
  • Size/Dimension: 0.090" L x 0.066" W (2.29mm x 1.68mm)
  • Inductance: 55.5 nH
  • Height-Seated (max): 0.062" (1.58mm)
  • Tolerance: ±5%
  • Core Material: ceramic
  • Q @ Freq: 60 @ 500MHz
  • Frequency for Self-Resonant: 1.55GHz
  • DC Resistance (DCR): 340mOhm Max
  • Supplier Device Package: 0805 (2012 Metric)
  • Operating Temperature: -40°C ~ 125°C
  • RoHS Compliant: true
