Same model may have multiple batches, images only for reference.

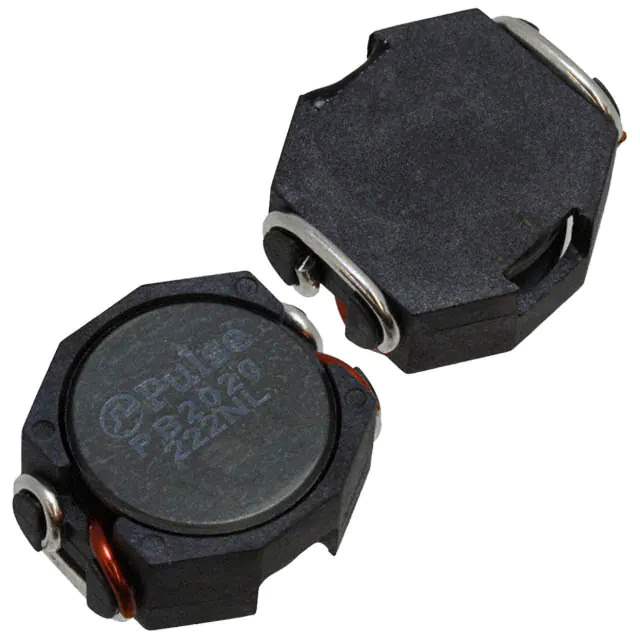

PB2020.222NLT Real Image
Same model may have multiple batches, images only for reference.

PB2020.222NLT

Part No PB2020.222NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.2UH 21.8A 2.8MOHM SM
Datasheet
PB2020.222NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PB2020NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 21.8 A
Current - Saturation (Isat) 40A
Shielding Unshielded
DC Resistance (DCR) 2.8mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.940" L x 0.820" W (23.87mm x 20.83mm)
Height - Seated (Max) 0.400" (10.16mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 740648-PB2020.222NLT
Ultra Librarian 3D Model Ultra Librarian PB2020.222NLT CAD Model

Description

The 740648-PB2020.222NLT is a fixed inductor used in electronic devices from Pulse Electronics Network.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: PB2020NL
  • Type: Wirewound
  • Package: Tape & reel
  • Shielding: Unshielded
  • Size/Dimension: 0.940" L x 0.820" W (23.87mm x 20.83mm)
  • Inductance: 2.2 μH
  • Maximum Seated Height: 0.400" (10.16mm)
  • Standard Package: 100 pieces
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.8mOhm max
  • Mounting Type: Surface Mount
  • Nonstandard Package/Case: Yes
  • Operating Temperature Range: -40°C to 130°C
  • ECCN: EAR99
  • Product Status: Active
  • Current Rating: 21.8A
  • Current Saturation (Isat): 40A
