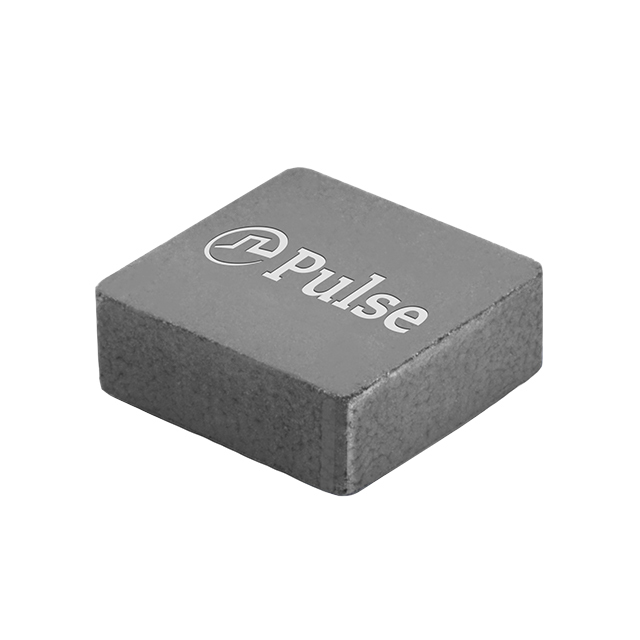

Same model may have multiple batches, images only for reference.
PA5004.102NLT Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PA5004.102NLT

Part No PA5004.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description 1 µH Shielded Molded Inductor 18 A 6.05mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Pulse Electronics
Series PA5004.XXXNLT
Packaging Reel - TR
Type Molded
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 23A
Shielding Shielded
DC Resistance (DCR) 6.05mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.268" L x 0.252" W (6.80mm x 6.40mm)
Height - Seated (Max) 0.122" (3.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1481446-PA5004.102NLT
Ultra Librarian 3D Model Ultra Librarian PA5004.102NLT CAD Model
