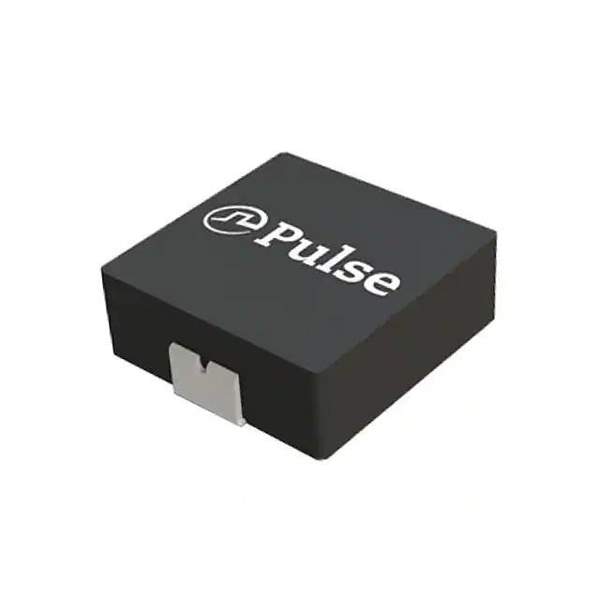

Same model may have multiple batches, images only for reference.

PA4342.472NLT

Name: PA4342.472NLT
Brand: Pulse
SKU: 852294
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA4342.472NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 10A 15.5MOHM SMD
Datasheet	PA4342.472NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PA4342.XXXNLT
Package	Tape & Reel
Product Status	Active
Type	Molded
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	10 A
Current - Saturation (Isat)	17A
Shielding	Shielded
DC Resistance (DCR)	15.5mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	852294-PA4342.472NLT
Ultra Librarian 3D Model	Ultra Librarian PA4342.472NLT CAD Model

Alternative Products

Description

The 852294-PA4342.472NLT is a fixed inductor from the PA4342.XXXNLT series manufactured by Pulse. This molded inductor is shielded, providing improved electromagnetic interference (EMI) performance.

Package: Tape & Reel
Dimensions: 0.453" L x 0.406" W (11.50mm x 10.30mm)
Seated Height: 0.157" (4.00mm)
Inductance: 4.7 µH
Inductance Tolerance: ±20%
DC Resistance (DCR): 15.5mOhm
Current Rating: 10A
Operating Temperature: -40°C to 125°C
