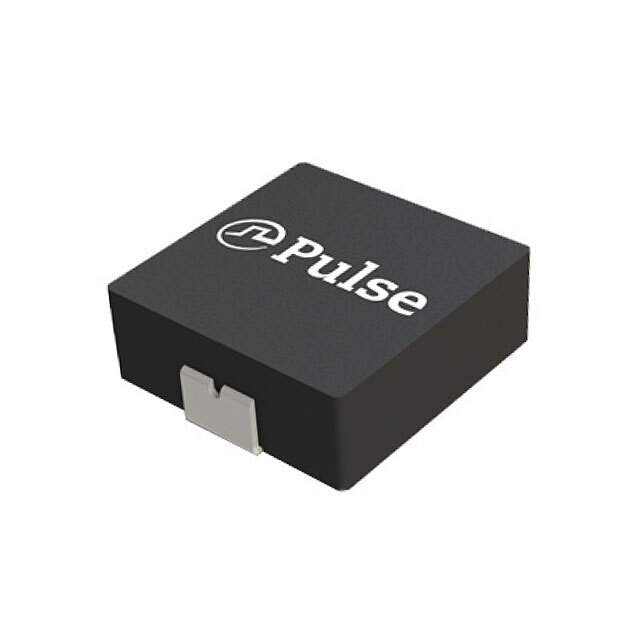

PA4342.223NLT Real Image
Same model may have multiple batches, images only for reference.

PA4342.223NLT

Part No PA4342.223NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 5A 74 MOHM SMD / 22 µH Shielded Molded Inductor 5 A 74mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4342.XXXNLT
Package Tape & Reel
Type Molded
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 7A
Shielding Shielded
DC Resistance (DCR) 74mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-3429-6,553-3429-2,553-3429-1,PA4342.223NLT-ND,-PA4342.223NLT
Standard Package 500
Win Source Part Number 1123249-PA4342.223NLT
Ultra Librarian 3D Model Ultra Librarian PA4342.223NLT CAD Model

Description

The PA4342.XXXNLT series of molded inductors from Pulse Electronics Power is a shielded fixed inductor with an inductance of 22 µH and a tolerance of ±20%.

  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 74mOhm Max
  • Current Rating: 5 A
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Seated Height: 0.157 inches (4.00mm)
  • Dimension: 0.453 inches L x 0.406 inches W (11.50mm x 10.30mm)
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
