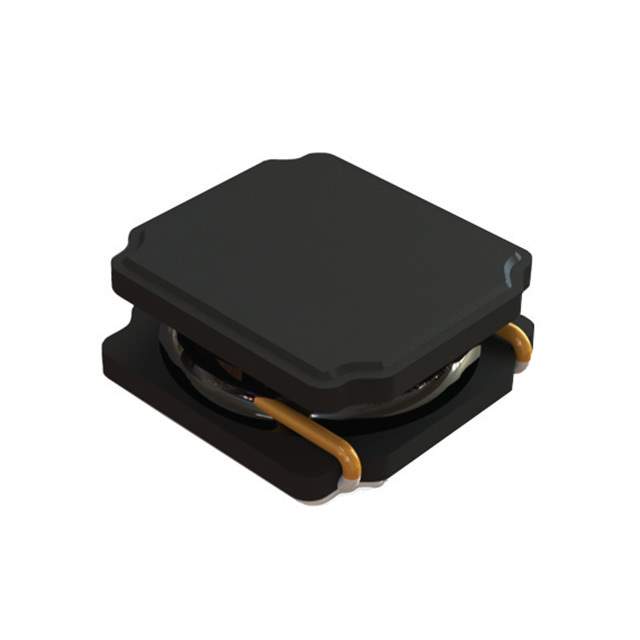

PA4334.223NLT Real Image1 PA4334.223NLT Real Image2
Same model may have multiple batches, images only for reference.
PA4334.223NLT Real Image1 PA4334.223NLT Real Image2
PA4334.223NLT Real Image1 PA4334.223NLT Real Image2
Same model may have multiple batches, images only for reference.

PA4334.223NLT

Part No PA4334.223NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 420MA 839MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 420 mA 839mOhm Max Nonstandard
Datasheet
PA4334.223NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse
Series PA4334.XXXNLT
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 420 mA
Current - Saturation (Isat) 420mA
Shielding Shielded
DC Resistance (DCR) 839mOhm Max
Q @ Freq -
Frequency - Self Resonant 22MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 2,000 pcs
Win Source Part Number 1383126-PA4334.223NLT
Ultra Librarian 3D Model Ultra Librarian PA4334.223NLT CAD Model

Description

The 1383126-PA4334.223NLT is a fixed inductor from Pulse.

  • Series: PA4334.XXXNLT
  • Core Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Package: Tape & Reel
  • Size: 0.126" L x 0.126" W (3.20mm x 3.20mm)
  • Inductance: 22 µH
  • Maximum Seated Height: 0.047" (1.20mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 839mOhm max
  • Current Rating: 420mA
  • Operating Temperature: -40°C to 125°C
