Same model may have multiple batches, images only for reference.

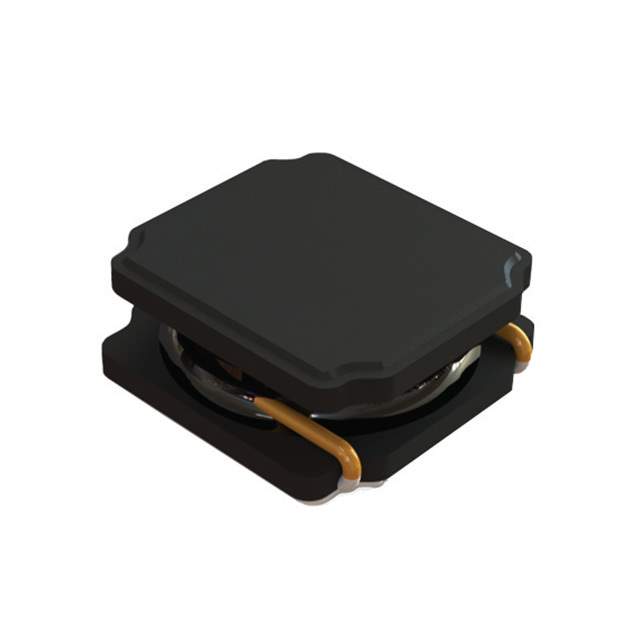

PA4334.332NLT Real Image
Same model may have multiple batches, images only for reference.

PA4334.332NLT

Part No PA4334.332NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.05A 130MOHM SM / 3.3 µH Shielded Drum Core, Wirewound Inductor 1.05 A 130mOhm Max Nonstandard
Datasheet
PA4334.332NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4334.XXXNLT
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.05 A
Current - Saturation (Isat) 1.05A
Shielding Shielded
DC Resistance (DCR) 130mOhm Max
Frequency - Self Resonant 46MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-3308-1,553-3308-2,553-3308-6,-PA4334.332NLT
Standard Package 2,000
Win Source Part Number 1127016-PA4334.332NLT
Ultra Librarian 3D Model Ultra Librarian PA4334.332NLT CAD Model

Description

The PA4334.332NLT is a fixed inductor with an inductance of 3.3 µH and a tolerance of ±20% manufactured by Pulse Electronics Power.

  • Current Rating: The inductor has a maximum current rating of 1.05A
  • DC Resistance: a DC resistance (DCR) of 130mOhm Max.
  • Shielding: The inductor is shielded
  • Height: has a height of 0.047" (1.20mm) when seated.
  • Category: The inductor is part of the Inductors, Coils, Chokes category
