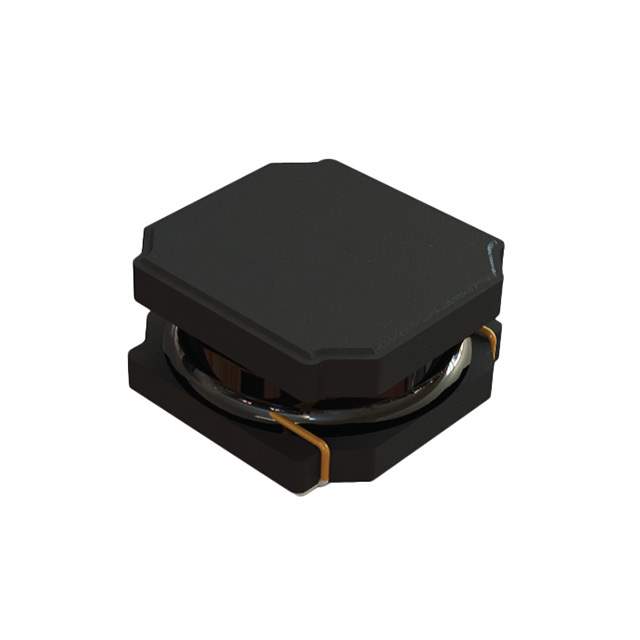

Same model may have multiple batches, images only for reference.

PA4332.222NLT

Name: PA4332.222NLT
Brand: Pulse
SKU: 1083793
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA4332.222NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 4.3A 48 MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 4.3 A 48mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4332.XXXNLT
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	4.3 A
Current - Saturation (Isat)	6.1A
Shielding	Shielded
DC Resistance (DCR)	48mOhm Max
Frequency - Self Resonant	25MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.165" L x 0.165" W (4.20mm x 4.20mm)
Height - Seated (Max)	0.079" (2.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-3290-1,553-3290-2,-PA4332.222NLT,553-3290-6
Standard Package	3,000
Win Source Part Number	1083793-PA4332.222NLT
Ultra Librarian 3D Model	Ultra Librarian PA4332.222NLT CAD Model

Alternative Products

Description

The Pulse PA4332.222NLT is a shielded drum core, wirewound fixed inductor with an inductance of 2.2 µH and a tolerance of ±20%.

Packaging: tape and reel
Mounting: SMD (SMT) mounting
Frequency Self-Resonant: 25 MHz
Maximum DC Resistance (DCR): 48mOhm
Height: 0.079" (2.00mm)
Dimension: 0.165" L x 0.165" W (4.20mm x 4.20mm)
Popularity: low popularity
Current Rating: 4.3 A
Current Saturation: 6.1A
ECCN: EAR99
REACH: REACH unaffected
