Same model may have multiple batches, images only for reference.

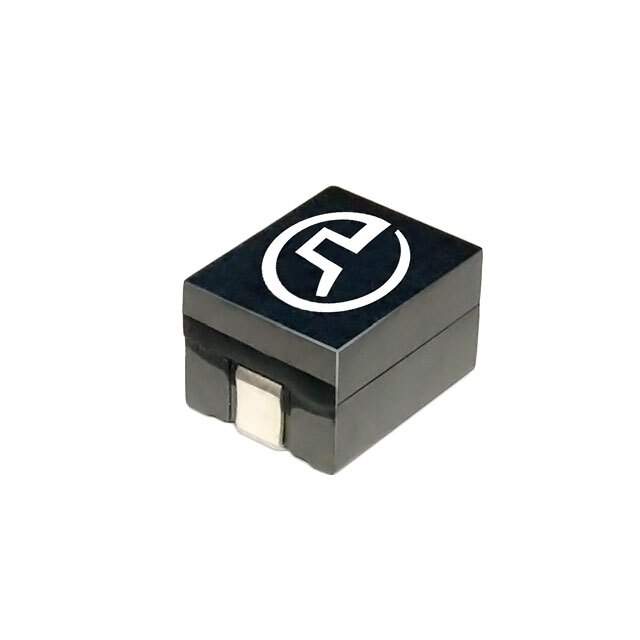

PA2202.231NLT Real Image
Same model may have multiple batches, images only for reference.

PA2202.231NLT

Part No PA2202.231NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 230NH 36A 0.48 MOHM
Datasheet
PA2202.231NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Inductance 230nH
Tolerance ±15%
Current Rating 36A
Current - Saturation 47A
DC Resistance (DCR) 0.48 mOhm
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 045545-PA2202.231NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PA2202.231NLT CAD Model

Description

The Pulse Electronics Corporation 045545-PA2202.231NLT is an inductor, coil, and choke category component.

  • Current Rating: 36A
  • Inductance: 230nH
  • Tolerance: ±15%
  • DC Resistance: 0.48 mOhm
  • Operating Temperature Range: -40°C to 130°C
