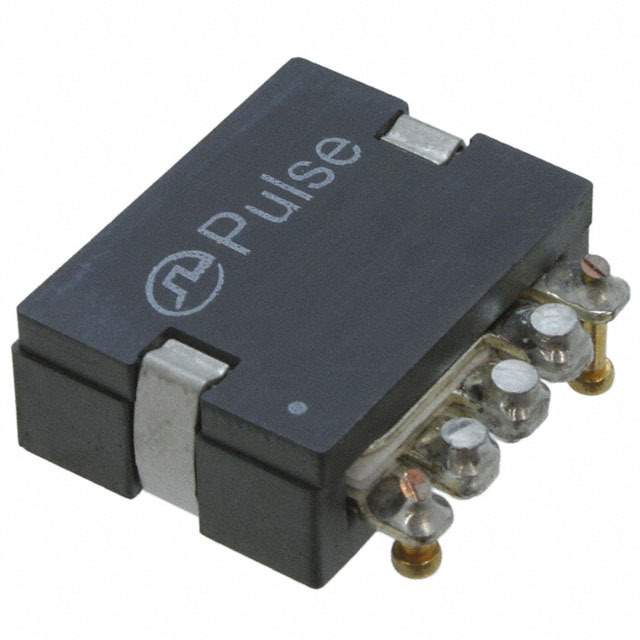

Same model may have multiple batches, images only for reference.

PA1294.450NLT

Name: PA1294.450NLT
Brand: Pulse
SKU: 1006322
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA1294.450NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 450NH 73A 0.48MOHM SMD / 450 nH Shielded Planar Inductor 73 A 0.48mOhm Max Nonstandard
Datasheet	PA1294.450NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA1294NL
Package	Tape & Reel (TR)
Type	Planar
Inductance	450 nH
Tolerance	±15%
Current Rating (Amps)	73 A
Current - Saturation (Isat)	95A
Shielding	Shielded
DC Resistance (DCR)	0.48mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Max)	0.290" (7.37mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	250
Win Source Part Number	1006322-PA1294.450NLT
Ultra Librarian 3D Model	Ultra Librarian PA1294.450NLT CAD Model

Alternative Products

Description

The PA1294.450NLT is a fixed inductor from Pulse Electronics Power.

Series: PA1294NL
Package: Tape and reel
Type: Shielded planar inductor
Inductance: 450 nH
Tolerance: ±15%
Dimensions: 0.780" L x 0.770" W (19.81mm x 19.56mm)
DC Resistance: 0.48mOhm
Current Rating: 73 A
Application: Suitable for use in various applications such as power supplies, motor controls, and lighting.
