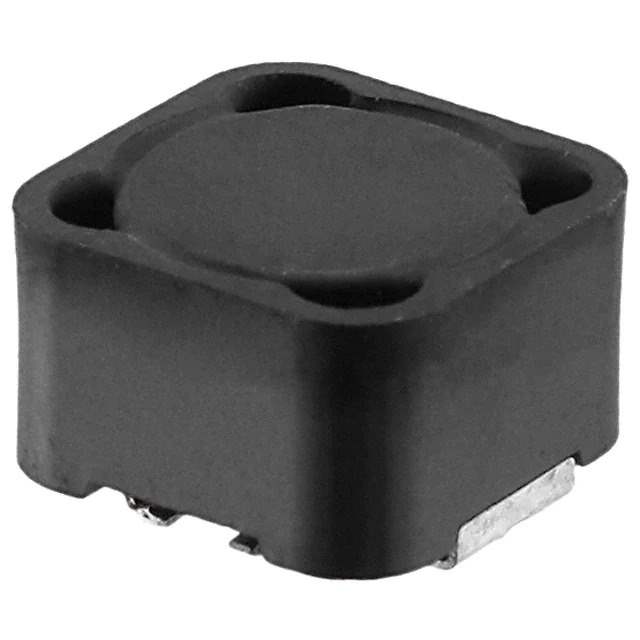

Same model may have multiple batches, images only for reference.

P1172.602NLT

Name: P1172.602NLT
Brand: Pulse
SKU: 929797
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1172.602NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 6UH 6A 16.5 MOHM SMD / 6 μH Shielded Wirewound Inductor 6 A 16.5mOhm Max Nonstandard
Datasheet	P1172.602NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	P1172NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	6 µH
Tolerance	±30%
Current Rating (Amps)	6 A
Current - Saturation (Isat)	6.9A
Shielding	Shielded
DC Resistance (DCR)	16.5mOhm Max
Frequency - Self Resonant	30MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.315" (8.00mm)
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	929797-P1172.602NLT
Ultra Librarian 3D Model	Ultra Librarian P1172.602NLT CAD Model

Alternative Products

Description

The 929797-P1172.602NLT is a wirewound fixed inductor from the P1172NL series by Pulse.

Series: P1172NL
Type: shielded inductor
Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Inductance: 6μH
Seated Height: 0.315" (8.00mm)
Package: tape & reel
Quantity: 400 pcs
Tolerance: ±30%
Operating Temperature: -40°C to 130°C
Current Rating: 6A
