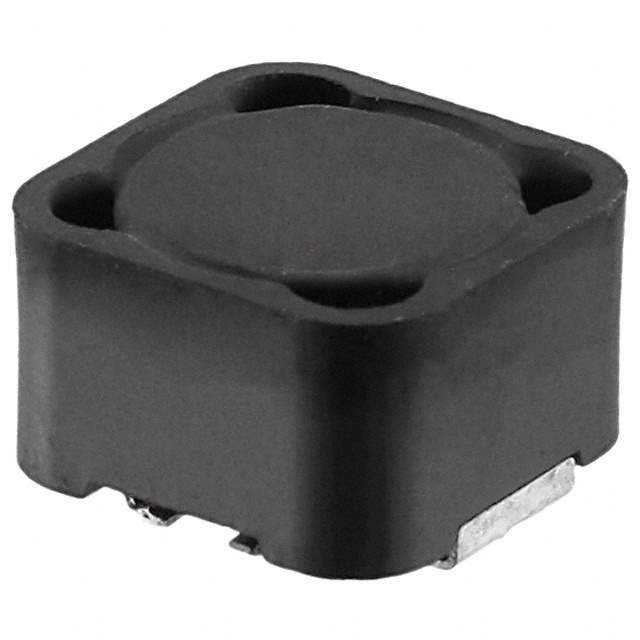

Same model may have multiple batches, images only for reference.

P1172.333NLT

Name: P1172.333NLT
Brand: Pulse
SKU: 1327680
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	P1172.333NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 33UH 3A 64.8 MOHM SMD / 33 µH Shielded Wirewound Inductor 3 A 64.8mOhm Max Nonstandard
Datasheet	P1172.333NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Wirewound
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Current - Saturation (Isat)	3A
Shielding	Shielded
DC Resistance (DCR)	64.8mOhm Max
Frequency - Self Resonant	10MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.315" (8.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	P1172.333NLT-ND,P1172.333NL,P1172333NLT,553-1971-6,553-1971-1,553-1971-2
Standard Package	400
Win Source Part Number	1327680-P1172.333NLT
Ultra Librarian 3D Model	Ultra Librarian P1172.333NLT CAD Model

Alternative Products

Description

The Pulse Electronics part number 1327680-P1172.333NLT is a fixed inductor with an inductance of 33µH.

Mounting Type: Surface Mount
Shielding: Yes
Operating Temperature Range: -40°C to 130°C
Package Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Standard Package: 400
Tolerance: ±20%
Current Rating: 3A
RoHS Compliant: Yes
