Same model may have multiple batches, images only for reference.

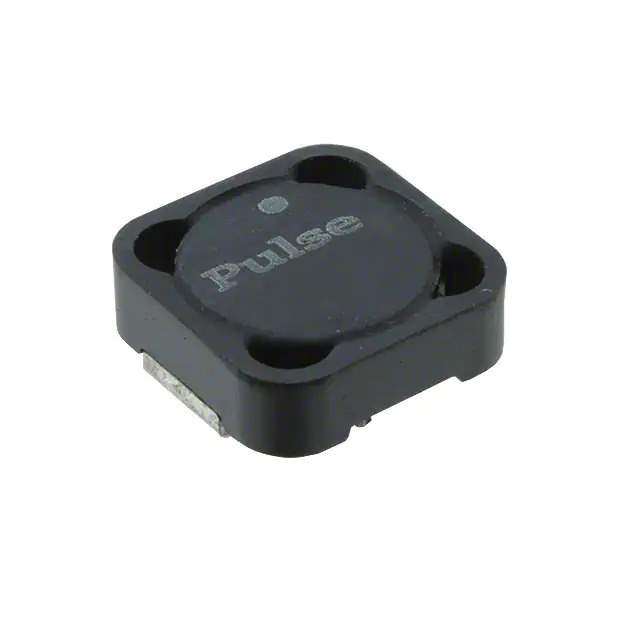

P1168.452NLT Real Image
Same model may have multiple batches, images only for reference.

P1168.452NLT

Part No P1168.452NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.5UH 6A 13 MOHM SMD / 4.5 μH Shielded Wirewound Inductor 6 A 13mOhm Max Nonstandard
Datasheet
P1168.452NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series P1168NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 4.5 µH
Tolerance ±30%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 6.4A
Shielding Shielded
DC Resistance (DCR) 13mOhm Max
Frequency - Self Resonant 35MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888293-P1168.452NLT
Ultra Librarian 3D Model Ultra Librarian P1168.452NLT CAD Model

Description

The P1168NL is a wirewound fixed inductor from Pulse.

  • Series: P1168NL
  • Size Dimension: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Inductance: 4.5 µH
  • Tolerance: ±30%
  • Mounting Type: Surface Mounted
  • Package: Nonstandard
  • DC Resistance (DCR): 13mOhm Max
  • Temperature Range: -40°C to 130°C
  • Current Rating: 6A
  • Frequency Self-Resonant: 35MHz
  • Shielding: Shielded
  • Packaging: Tape and Reel
  • Part Status: Active
