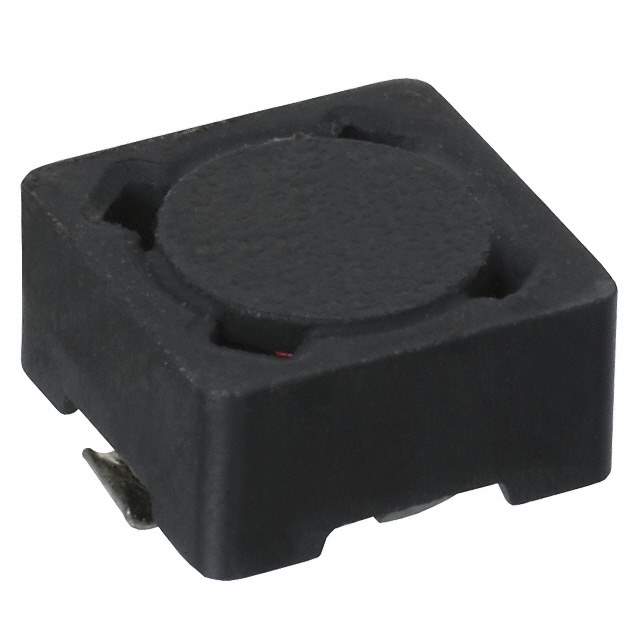

P1167.272NLT Real Image
Same model may have multiple batches, images only for reference.

P1167.272NLT

Part No P1167.272NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.7UH 3.5A 16 MOHM SMD  /  2.7 µH Shielded Wirewound Inductor 3.5 A 16mOhm Max Nonstandard
Datasheet
P1167.272NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series P1167NL
Package Tape & Reel
Type Wirewound
Inductance 2.7 µH
Tolerance ±30%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 16mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.297" L x 0.297" W (7.54mm x 7.54mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-1074-6,553-1074-6-ND,553-1074-2,553-1074-1,553-P1167.272NLTCT,553-P1167.272NLTTR,553-P1167.272NLTDKR,P1167.272TNL,553-1074-1-ND,P1167272NLT,553-1074-2-ND
Standard Package 900
Win Source Part Number 1173527-P1167.272NLT
Ultra Librarian 3D Model Ultra Librarian P1167.272NLT CAD Model

Description

The Pulse P1167.272NLT is a wirewound type fixed inductor with a shielding feature.

  • Type: Wirewound, Fixed
  • Shielding: Yes
  • Packaging: Tape and Reel
  • Standard Package: 900
  • Inductance: 2.7 µH
  • Tolerance: ±30%
  • DC Resistance: 16mOhm Max
  • Height: 0.177" (4.50mm)
  • Dimensions: 0.297" L x 0.297" W (7.54mm x 7.54mm)
  • Current Rating: 3.5 A
  • Saturation Current: 3.5A
  • Temperature Range: -40°C to 130°C
