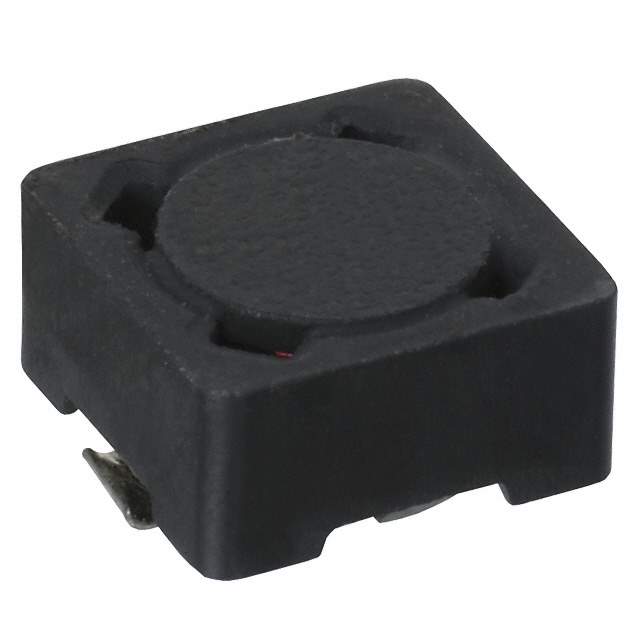

P1167.105NLT Real Image
Same model may have multiple batches, images only for reference.

P1167.105NLT

Part No P1167.105NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1MH 190MA 4.93 OHM SMD / 1 mH Shielded Wirewound Inductor 190 mA 4.93Ohm Max Nonstandard
Datasheet
P1167.105NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series P1167NL
Package Tape & Reel (TR)
Type Wirewound
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 190 mA
Current - Saturation (Isat) 190mA
Shielding Shielded
DC Resistance (DCR) 4.93Ohm Max
Frequency - Self Resonant 1.8MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.297" L x 0.297" W (7.54mm x 7.54mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names P1167105NLT,553-1103-2,P1167.105TNL,553-1103-1
Standard Package 900
Win Source Part Number 980027-P1167.105NLT
Ultra Librarian 3D Model Ultra Librarian P1167.105NLT CAD Model

Description

The P1167NL series wirewound shielded inductor from Pulse Electronics Power is designed for use in a variety of applications.

  • Inductance: 1 mH
  • Tolerance: ±20%
  • Current Rating: 190 mA
  • DC Resistance (DCR): 4.93 Ohm Max
  • Frequency Self-Resonant: 1.8 MHz
  • Operating Temperature: -40°C to 130°C
  • Package: Tape & Reel (TR)
  • Height: 0.177" (4.50mm)
