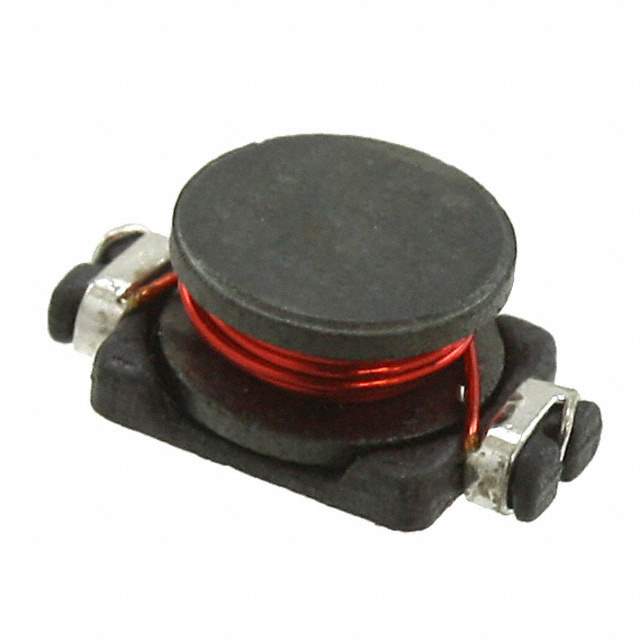

P0770.152NLT Real Image
Same model may have multiple batches, images only for reference.

P0770.152NLT

Part No P0770.152NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1.5UH 2.6A 50 MOHM SMD / 1.5 µH Unshielded Wirewound Inductor 2.6 A 50mOhm Max Nonstandard
Datasheet
P0770.152NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series P0770NL
Package Tape & Reel
Type Wirewound
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2.6A
Shielding Unshielded
DC Resistance (DCR) 50mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names P0770152NLT,553-1943-6,P0770.152NLT-ND,553-1943-1,553-1943-2
Standard Package 2,500
Win Source Part Number 1213743-P0770.152NLT
Ultra Librarian 3D Model Ultra Librarian P0770.152NLT CAD Model

Description

The P0770NL series wirewound inductor is an unshielded fixed inductor designed for use in a variety of electronic applications. P0770NL is the product, and Pulse Electronics Power is the manufacturer.

  • Type: Fixed, Unshielded
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Mount: SMD (SMT)
  • Packaging: Tape and Reel
  • Height (Seated): 0.115" (2.92mm)
  • DC Resistance (DCR): 50mOhm Max
  • Current Rating (Amps): 2.6 A
  • Operating Temperature: -40°C ~ 130°C
  • Dimension: 0.260" L x 0.175" W (6.60mm x 4.45mm)
  • Also known as: P0770152NLT, 553-1943-6, P0770.152NLT-ND, 553-1943-1, and 553-1943-2
