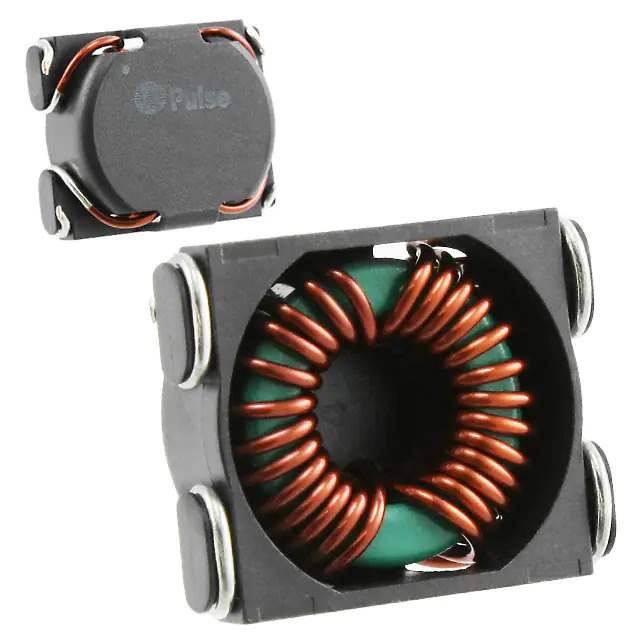

P0502NL Real Image P0502NL Real Image
Same model may have multiple batches, images only for reference.
P0502NL Real Image P0502NL Real Image
P0502NL Real Image P0502NL Real Image
Same model may have multiple batches, images only for reference.

P0502NL

Part No P0502NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 14A 2LN SMD
Datasheet
P0502NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 14A
DC Resistance (DCR) (Max) 8mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Surface Mount
Size / Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) 0.500" (12.70mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 651419-P0502NL
Ultra Librarian 3D Model Ultra Librarian P0502NL CAD Model

Description

The 651419-P0502NL is a common mode choke designed for use in electronic circuits.

  • Category: Filters - Common Mode Chokes
  • Package: Tube
  • Size: 1.220" L x 1.000" W (30.99mm x 25.40mm)
  • Maximum Height: 0.500" (12.70mm)
  • Mounting Type: Surface Mount
  • Package/Case: Horizontal, 4 PC pad
  • Maximum Current Rating: 14A
  • DC Resistance (DCR): 8mOhm
  • Operating Temperature: -40°C to 120°C
  • REACH: Unaffected
  • Manufacturer: Pulse
  • Status: Active
