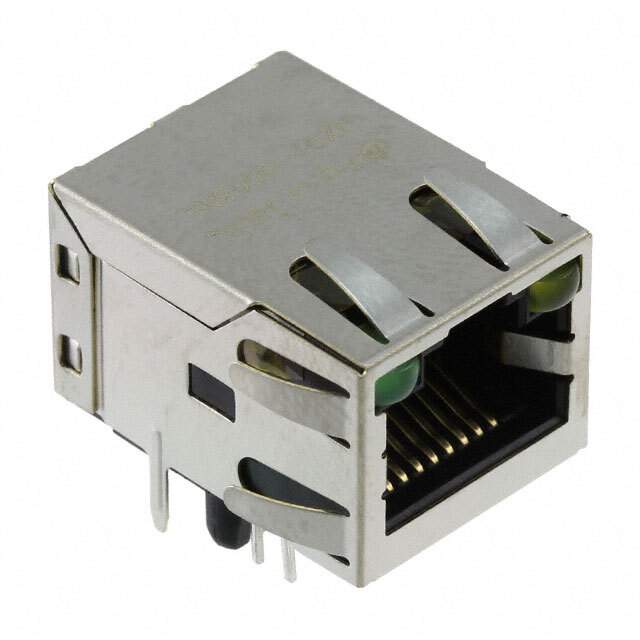

JXD1-0008NL Real Image
Same model may have multiple batches, images only for reference.

JXD1-0008NL

Part No JXD1-0008NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JXD1-0008NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)
Shield Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 553-3237,-JXD1-0008NL
Standard Package 50
Win Source Part Number 1333932-JXD1-0008NL
Ultra Librarian 3D Model Ultra Librarian JXD1-0008NL CAD Model

Description

The Pulse Electronics 1333932-JXD1-0008NL is a RJ45 modular connector jack with magnetics.

  • Rows: Single-row
  • Mounting Style: Through-hole
  • Shielding: EMI finger
  • Material: Copper alloy
  • Contact Finish: Gold
  • Orientation: 90-degree angle (right)
  • LED Color: Green-yellow
  • Applications: 10/100 Base-TX and AutoMDIX
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Height Above Board: 0.543 inches (13.8mm)
  • Cores per Jack: 4
  • Termination Method: Soldering
  • Operating Temperature Range: -40°C to 85°C
  • Compliance: RoHS compliant
