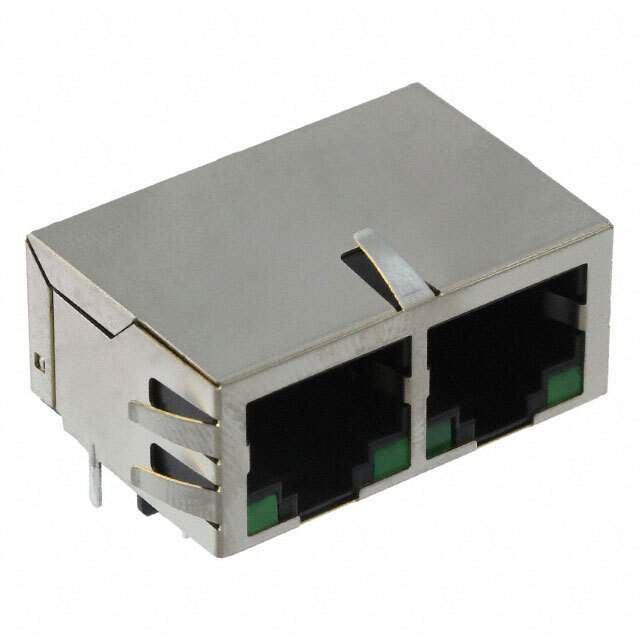

JX80-0037NL

Part No JX80-0037NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 2PORT 100 BASE-TX PCB / 2 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JX80-0037NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JX80
Package Tray
Connector Type RJ45
Number of Ports 2
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.536" (13.61mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 553-3229,-JX80-0037NL
Standard Package 45
Win Source Part Number 1180652-JX80-0037NL
Ultra Librarian 3D Model Ultra Librarian JX80-0037NL CAD Model

Description

The Pulse Electronics Network PULSEJACK™ JX80 is a series of modular connectors - jacks with magnetics. JX80-0037NL is part of the Pulse Electronics Network PULSEJACK™ JX80 series.

  • Feature: board guide
  • Connector Type: RJ45
  • Termination: solder
  • Contact Finish: gold with a thickness of 30.0μin (0.76μm)
  • Contact Material: phosphor bronze
  • Shielding: EMI finger
  • Housing Material: thermoplastic
  • Height Above Board: 0.536" (13.61mm)
  • Orientation: 90° angle (right)
  • Number of Ports: two
  • LED Color: green-yellow
  • Applications: 10/100 Base-TX and AutoMDIX
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.8000
