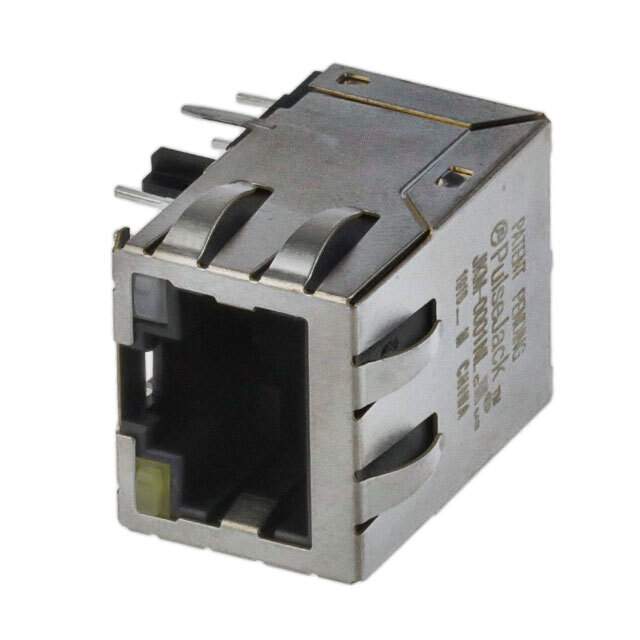

JKM-0001NL Real Image
Same model may have multiple batches, images only for reference.

JKM-0001NL

Part No JKM-0001NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JKM-0001NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number JKM-0001NL-ND,553-3880
Standard Package 45
Win Source Part Number 1333933-JKM-0001NL
Ultra Librarian 3D Model Ultra Librarian JKM-0001NL CAD Model

Description

The 1333933-JKM-0001NL is a modular connector jack with magnetics from Pulse Electronics.

  • Orientation: Right Angle
  • Shielding: Shielded, EMI Finger
  • Connector Type: RJ45
  • Termination Style: Solder
  • Number of Ports: 1
  • Package: 45
  • Housing Material: Thermoplastic
  • Height Above Board: 0.545" (13.84mm)
  • LED Color: Green-Yellow
  • Number of Cores per Jack: 8
  • Temperature Range: 0°C to 70°C
  • Applications: 10/100/1000 Base-T and AutoMDIX
