Same model may have multiple batches, images only for reference.

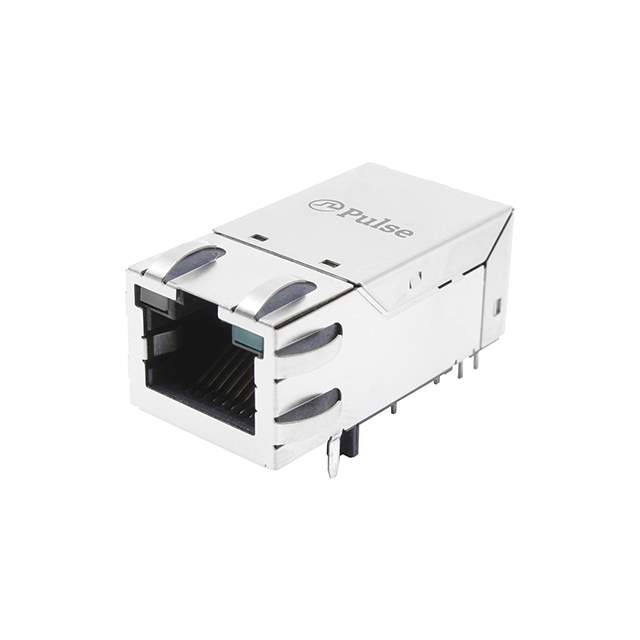

JK0-2500NL Real Image
Same model may have multiple batches, images only for reference.

JK0-2500NL

Part No JK0-2500NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 2.5G BASE-T PCB / 1 Port RJ45Through Hole 2.5G Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JK0
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.546" (13.87mm)
LED Color Yellow, Green - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1840-1038
Standard Package 45
Win Source Part Number 966822-JK0-2500NL
Ultra Librarian 3D Model Ultra Librarian JK0-2500NL CAD Model

Description

The Pulse 966822-JK0-2500NL is a connector that belongs to the PULSEJACK™ JK0 series Pulse.

  • Orientation: 90° (Right Angle)
  • Shielding: Shielded with EMI finger
  • Housing Material: Thermoplastic
  • Mounting Type: Through Hole
  • Connector Type: RJ45
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • LED Color: Yellow and Green
  • Cores per Jack: 8
  • Operating Temperature: 0°C to 70°C
  • HTSUS: 8536.69.4040
  • Alternative Parts (Cross-Reference): None Available
