Same model may have multiple batches, images only for reference.

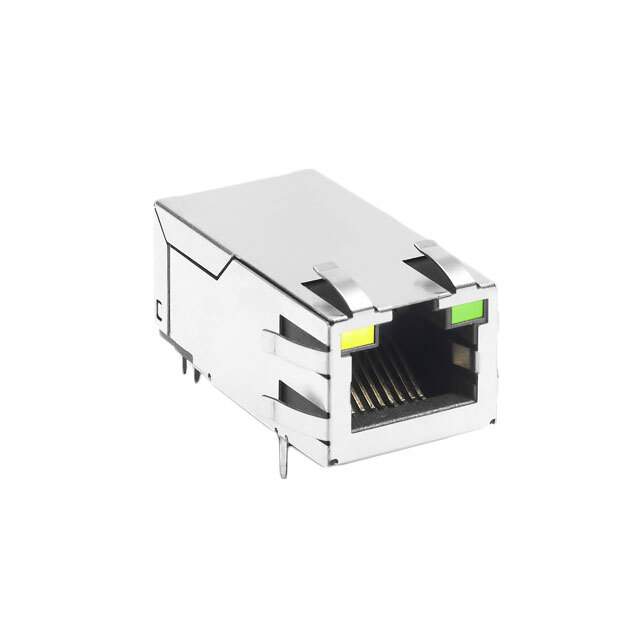

JK0-0177NL Real Image
Same model may have multiple batches, images only for reference.

JK0-0177NL

Part No JK0-0177NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB  /  1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Datasheet
JK0-0177NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JK0
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.546" (13.87mm)
LED Color Yellow - Green, Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 553-2618,JK0-0177NL-ND,-JK0-0177NL
Standard Package 45
Win Source Part Number 1128546-JK0-0177NL
Ultra Librarian 3D Model Ultra Librarian JK0-0177NL CAD Model

Description

The Pulse Electronics Network PULSEJACK™ JK0 modular connector is a high-quality product designed to provide high performance and reliability.

  • Feature: board guide
  • Connector Type: RJ45
  • Termination: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Package/Case: tray
  • Height Above Board: 0.546" (13.87mm)
  • Shielding: shielded, EMI finger
  • Housing Material: thermoplastic
  • Orientation: 90° angle (right)
  • Number of Ports: 1
  • LED Color: yellow-green, green
  • Number of Cores per Jack: 8
  • Tab Direction: up
  • Shield Material: brass
  • Mounting Type: through-hole
  • Temperature Range for Operating: 0°C to 70°C
  • Applications: 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
