Same model may have multiple batches, images only for reference.

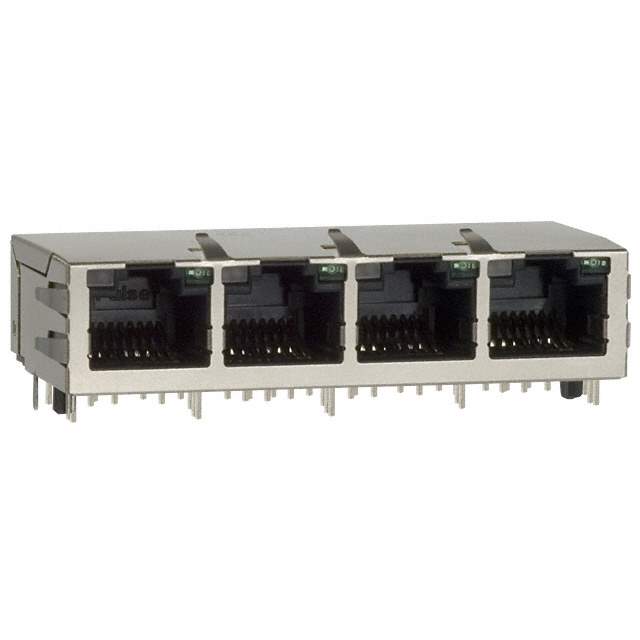

JG0-0032NL Real Image
Same model may have multiple batches, images only for reference.

JG0-0032NL

Part No JG0-0032NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 4PORT 100 BASE-TX PCB / 4 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Datasheet
JG0-0032NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Bulk
Connector Type RJ45
Number of Ports 4
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Yellow - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-1362,JG00032NL
Standard Package 15
Win Source Part Number 1333898-JG0-0032NL
Ultra Librarian 3D Model Ultra Librarian JG0-0032NL CAD Model

Description

The Pulse Electronics 1333898-JG0-0032NL is a modular connector jack with magnetics.

  • Orientation: 90° angle orientation
  • Shielding: EMI finger
  • Connector Type: RJ45
  • Ports: 4
  • Cores per Jack: 4
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Phosphor bronze
  • Housing Material: Thermoplastic
  • Feature: Board guide
  • Mounting: Through-hole
  • Height Above Board: 0.535" (13.59mm)
  • Temperature Range: 0°C to 70°C
  • RoHS Compliant: Yes
  • LED Color: Green and yellow-green
