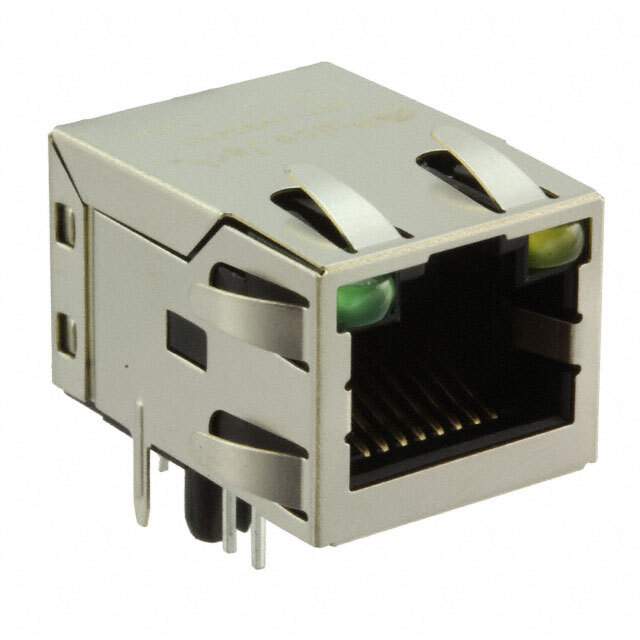

JD1-0004NL Real Image
Same model may have multiple batches, images only for reference.

JD1-0004NL

Part No JD1-0004NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JD1-0004NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 553-2607
Standard Package 50
Win Source Part Number 1333917-JD1-0004NL
Ultra Librarian 3D Model Ultra Librarian JD1-0004NL CAD Model

Description

The Pulse Electronics 1333917-JD1-0004NL is a shielded RJ45 modular connector jack with magnetics.

  • Features: Board lock
  • Orientation: 90-degree right angle
  • Application: 10/100 Base-TX and AutoMDIX
  • Ports: 1
  • Cores per Jack: 4
  • Contact Material: Copper alloy
  • Contact Finish: Gold finish
  • Contact Finish Thickness: 6.00µin (0.152µm)
  • Housing Material: Thermoplastic
  • Shield Material: Brass
  • Mounting: Through hole
  • LED Color: Green-yellow
  • Compliance: RoHS compliant
  • Temperature Range: 0°C to 70°C
  • Package: Tray package
  • Standard Package: 50
