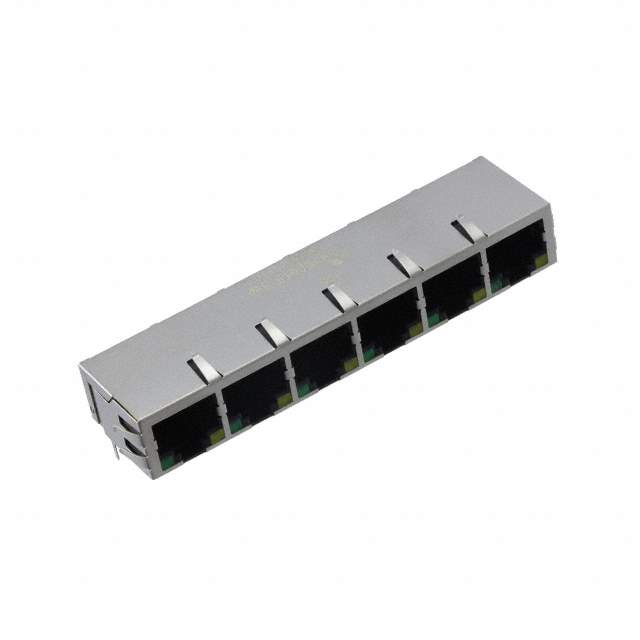

Same model may have multiple batches, images only for reference.

J8064D668ANL

Name: J8064D668ANL
Brand: Pulse
SKU: 1333903
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	J8064D668ANL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 6PORT 100 BASE-TX PCB / 6 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet	J8064D668ANL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Pulse Electronics
Packaging	Tray
Connector Type	RJ45
Number of Ports	6
Number of Rows	1
Applications	10/100 Base-TX, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.536" (13.61mm)
LED Color	Green - Yellow
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	553-1355
Standard Package	15
Win Source Part Number	1333903-J8064D668ANL
Ultra Librarian 3D Model	Ultra Librarian J8064D668ANL CAD Model

Alternative Products

Description

The Pulse Electronics J8064D668ANL is a modular connector jack with magnetics that is perfect for use in a variety of electronic devices.

Shielding: Shielded, EMI finger
Housing Material: Thermoplastic
Number of Ports: 6
Cores per Jack: 4
Orientation: 90 degree angle (right)
Mounting: Through hole
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Phosphor bronze
Temperature Range: 0°C to 70°C
Compliance: RoHS compliant
