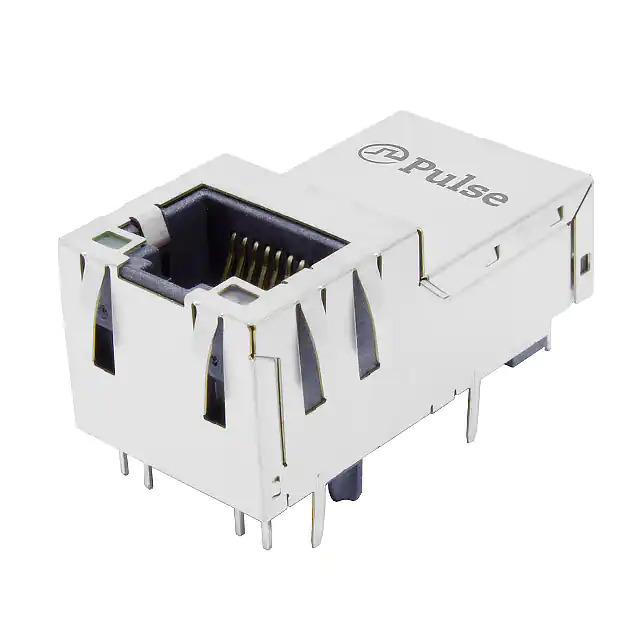

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse Electronics
Series PULSEJACK™ J1V
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 5G Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.581" (14.76mm)
LED Color Yellow, Green - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1354261-J1V-U5000NL
Ultra Librarian 3D Model Ultra Librarian J1V-U5000NL CAD Model

Description

The 1354261-J1V-U5000NL is a modular connector jack with magnetics manufactured by Pulse Electronics. It is part of the PULSEJACK™ J1V series, designed for applications such as 5G Base-T, AutoMDIX, and Power over Ethernet (PoE).

  • Series: PULSEJACK™ J1V
  • Applications: 5G Base-T, AutoMDIX, Power over Ethernet (PoE)
  • Board Lock: Yes
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Orientation: Vertical
  • Shielded: Yes, with EMI finger
  • Height Above Board: 0.581" (14.76mm)
  • Connector Type: RJ45
  • Number of Rows: 1
  • Number of Cores per Jack: 8
