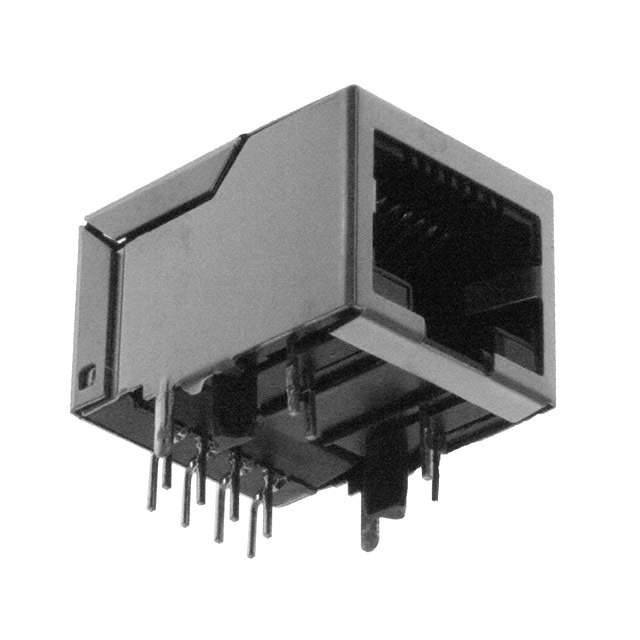

J0073D01BNL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-1490,J0073D01BNL-ND
Standard Package 30
Win Source Part Number 1333944-J0073D01BNL
Ultra Librarian 3D Model Ultra Librarian J0073D01BNL CAD Model

Description

The Pulse Electronics J0073D01BNL is a high-quality modular connector jack that is designed to provide reliable and efficient performance.

  • Shielded: Yes
  • Applications: 10/100 Base-TX, AutoMDIX
  • Row: Single-row
  • Height Above Board: 0.545" (13.84mm)
  • Tab Direction: Down
  • LED Color: Green-Yellow
  • Housing Material: Thermoplastic
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Contact Material: Phosphor Bronze
  • Shield Material: Brass
