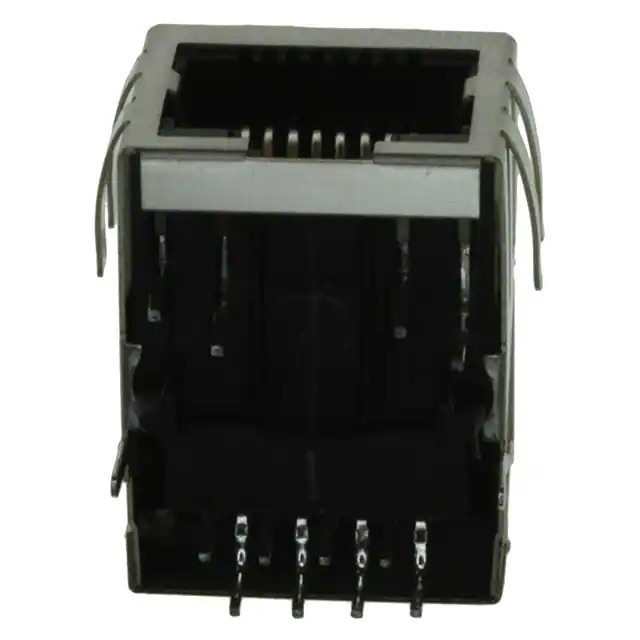

J00-0051NL Pulse
Same model may have multiple batches, images only for reference.

J00-0051NL

Part No J00-0051NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 10 BASE-TX PCB / 1 Port RJ45Through Hole 10 Base-TX, AutoMDIX
Datasheet
J00-0051NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse Electronics
Series PULSEJACK™ J00
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362643-J00-0051NL
Ultra Librarian 3D Model Ultra Librarian J00-0051NL CAD Model

Description

The Pulse Electronics PULSEJACK™ J00 is a modular connector jack with magnetics designed for various applications, including 10 Base-TX and AutoMDIX.

  • Series: PULSEJACK™ J00
  • Applications: 10 Base-TX, AutoMDIX
  • Temperature Range: 0°C to 70°C
  • Shielding: Shielded, EMI Finger
  • Angle Orientation: 90° Angle
  • Mounting Type: Through Hole
  • Product Status: Active
  • Packaging: Tray
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
